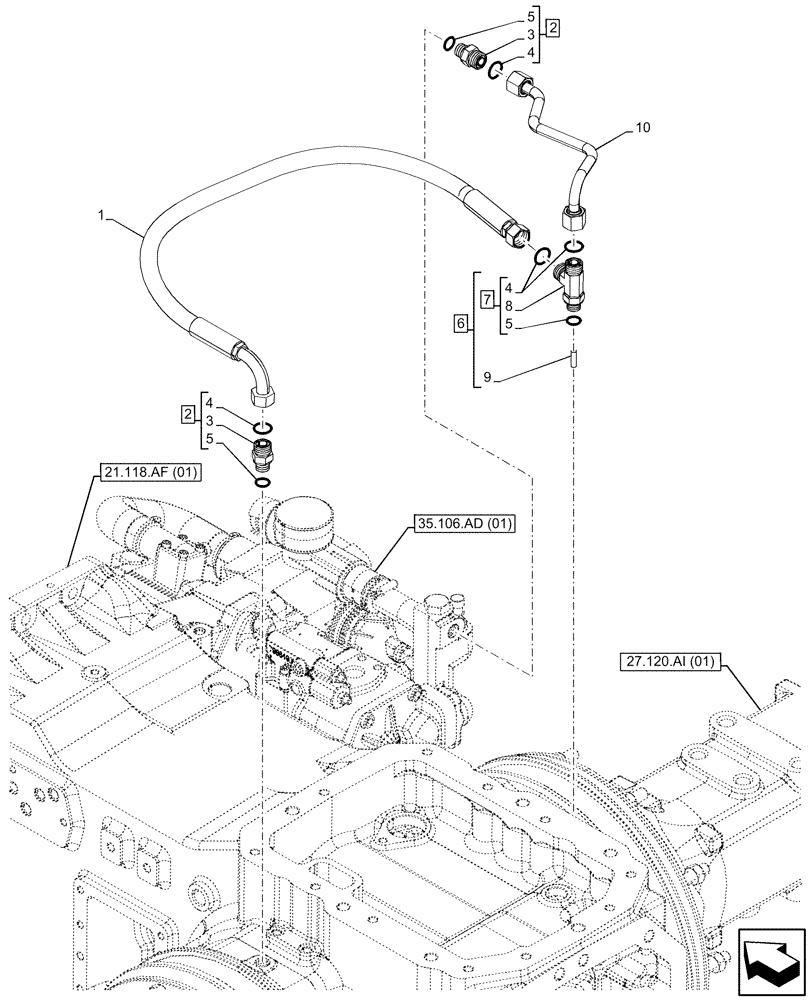

Запчасти Case IH MAXXUM 115 (33.202.AP[04]) - VAR - 390801, 758437, 758440 - FINAL DRIVE, BRAKE LINE (33) - BRAKES & CONTROLS

1

87624622

HOSE

RH, Brake Pipe, 12.7mm ID x 860mm

1шт.

2

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 3 (Qty 1), 4 (Qty 1), 5 (Qty 1)

2шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

2шт.

4

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

4шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

6

87722406

HYD CONNECTOR

ASSY, Incl 4 (Qty 2), 5 (Qty 1), 7 - 9

1шт.

7

87315465

HYD CONNECTOR,13/16"-16 ORFS x 13/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 4 (Qty 2), 5(Qty 1), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Tee, Incl in 7

1шт.

9

14606170

SLOTTED PIN

1шт.

10

87634968

TUBE

Brake Pipe

1шт.
