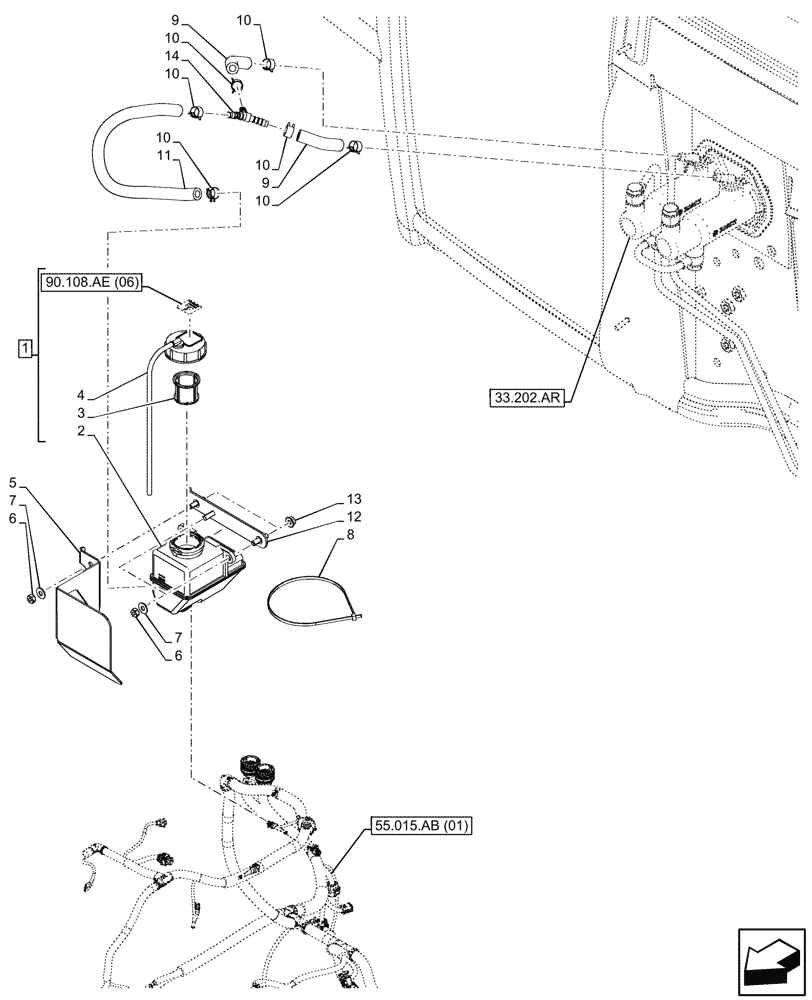

Запчасти Case IH MAXXUM 115 (33.202.AN[01A]) - VAR - 391630, 758479, 758480, 758481 - BRAKE FLUID RESERVOIR - BEGIN YR 13-NOV-2015 (33) - BRAKES & CONTROLS

1

47586695

BRAKE FLUID TANK

ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Reservoir, Incl in 1

1шт.

3

87491693

FILTER

1шт.

4

NSS

NOT SOLD SEPARAT

Cap, Incl in 1

1шт.

5

47704091

BRACKET

1шт.

6

15896211

NUT,M6, Cl 8

3шт.

7

12644421

WASHER,6.15mm ID x 15mm OD x 1mm Thk

3шт.

8

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

1шт.

9

82011329

FLEXIBLE HOSE,8mm ID x 80mm L, SAE 30R7

Brake Reservoir Outlet, 8mm ID x 14.3mm OD x 80mm

2шт.

10

82011382

HOSE CLAMP,15mm - 17mm

6шт.

11

47613362

HOSE,8mm ID x 170mm L

Brake Reservoir Outlet, 8mm ID x 14.3mm OD x 170mm

1шт.

12

47775207

BRACKET

1шт.

13

14059211

FLANGE NUT,M6 x 1, Flg, Cl 8

2шт.

14

87397960

TEE,3 Hoses

1шт.
