Запчасти Case IH MAXXUM 115 (31.146.AC[02]) - VAR - 743700, 744790 - FRONT PTO, HOUSING, COMPONENTS (31) - IMPLEMENT POWER TAKE OFF

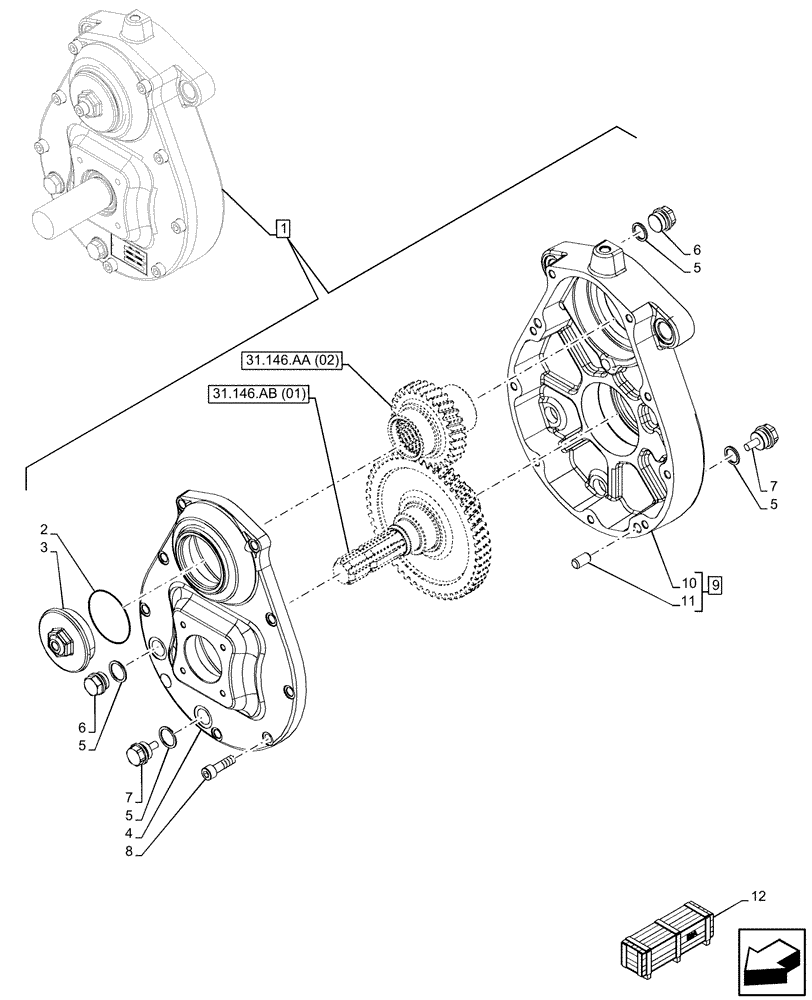

Схема запчастей Case IH MAXXUM 115 - (31.146.AC[02]) - VAR - 743700, 744790 - FRONT PTO, HOUSING, COMPONENTS (31) - IMPLEMENT POWER TAKE OFF
31.146.ab (01)
4
11
7
5
1
5
12
2
6
10
5
6
8
7
3
9
5
31.146.aa (02)

Артикул

Название

Примечание

Количество

1

84265034

GEARBOX

ASSY, Incl 2 - 11

1шт.

See also Figure 31.146.AA (02), 31.146.AB

1шт.

2

14460480

O-RING,2.612" ID x 2.818" OD x .103"

1шт.

3

47126758

PLUG,M70 x 2

1шт.

4

NSS

NOT SOLD SEPARAT

Transmission Housing, Incl in 1

1шт.

5

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

4шт.

6

10305111

PLUG,M22 x 1.5 x 21, Cl5.8

2шт.

7

5118991

PLUG,M22 x 1.5

2шт.

8

14307634

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 10.9, Full Thd

9шт.

9

5197431

HOUSING

ASSY, Incl 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Housing, Incl in 9

1шт.

11

10839710

DOWEL,M10 x 15.00mm

2шт.

12

718041054

DIA KIT, TRACTOR

Front Power Take-Off W/6 Splines, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

12

719098114

DIA KIT, TRACTOR

Front Power Take-Off for Hydraulic Power Lift W/6 Splines, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 16
