Запчасти Case IH MAXXUM 115 (31.146.AC[01]) - VAR - 743700, 744790 - FRONT PTO, HOUSING (31) - IMPLEMENT POWER TAKE OFF

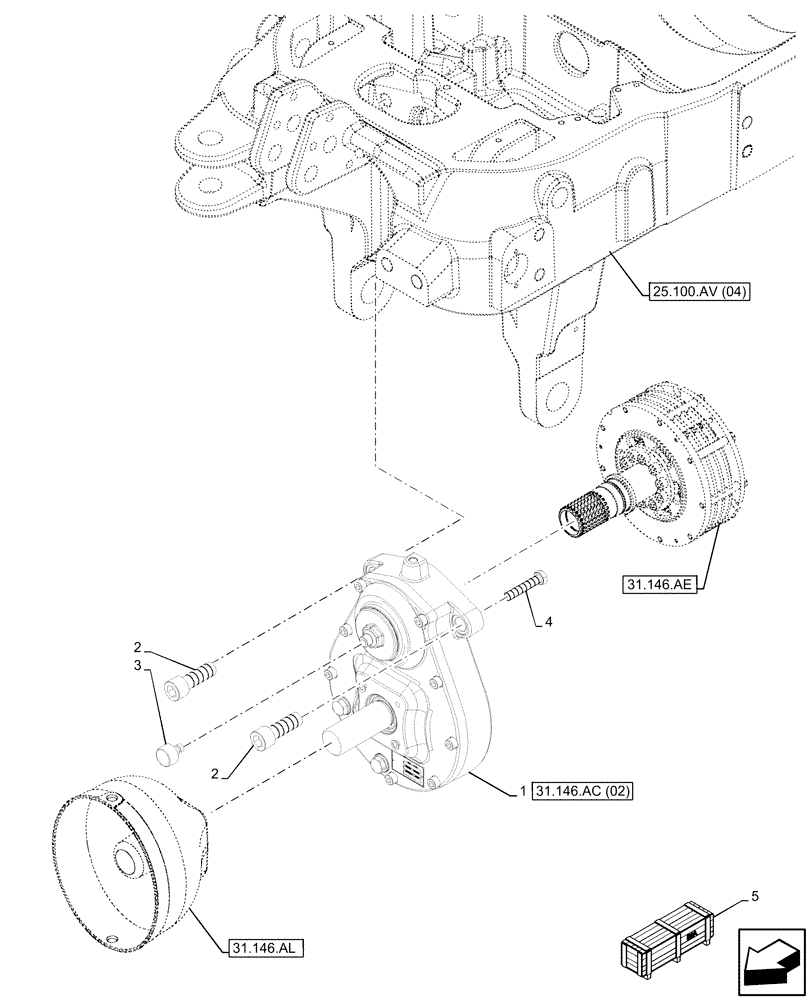

Схема запчастей Case IH MAXXUM 115 - (31.146.AC[01]) - VAR - 743700, 744790 - FRONT PTO, HOUSING (31) - IMPLEMENT POWER TAKE OFF
25.100.av (04)
2
1
3
5
2
4
31.146.al
31.146.ae
31.146.ac (02)

Артикул

Название

Примечание

Количество

1

84265034

GEARBOX

ASSY

1шт.

2

87301672

HEX SOC SCREW,M20 x 2.5 x 60mm, Cl 10.9, Full Thd

2шт.

3

47126759

BREATHER,M12 x 1.25

1шт.

4

15541121

SCREW,Hex, M12 x 1.25 x 65mm, Cl 8.8

1шт.

5

718041054

DIA KIT, TRACTOR

Front Power Take-Off W/6 Splines, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

719098114

DIA KIT, TRACTOR

Front Power Take-Off for Hydraulic Power Lift W/6 Splines, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 8
