Запчасти Case IH MAXXUM 115 (31.146.AB) - VAR - 743700, 744790 - FRONT PTO, DRIVEN SHAFT, COMPONENTS (31) - IMPLEMENT POWER TAKE OFF

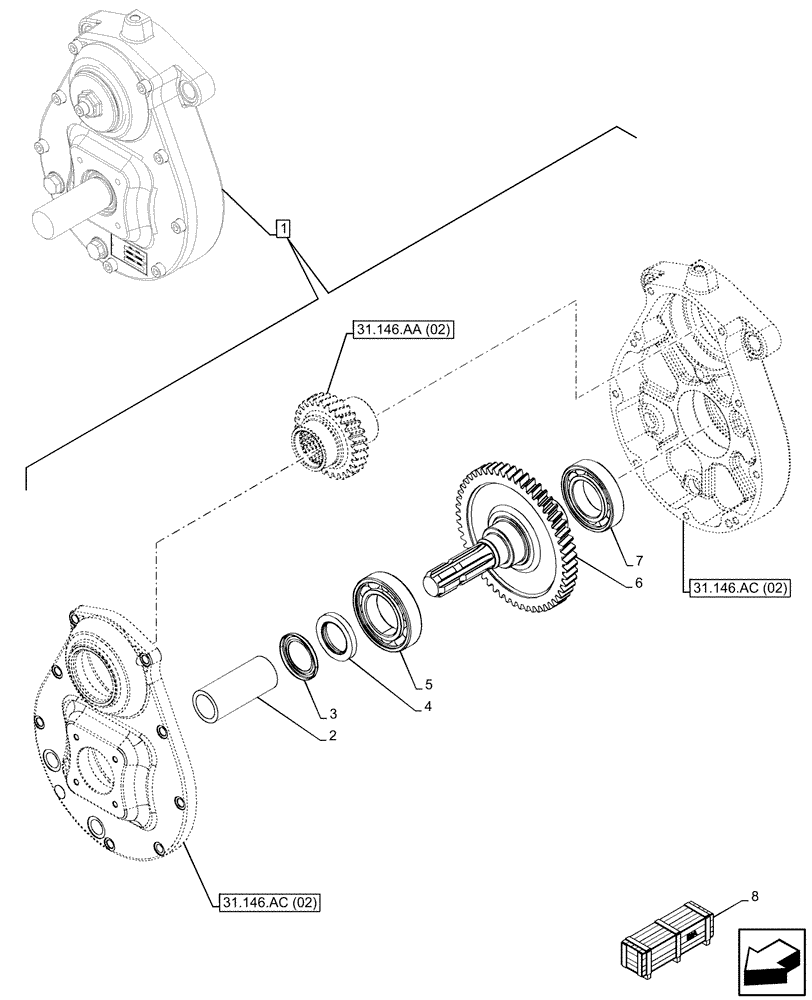

Схема запчастей Case IH MAXXUM 115 - (31.146.AB) - VAR - 743700, 744790 - FRONT PTO, DRIVEN SHAFT, COMPONENTS (31) - IMPLEMENT POWER TAKE OFF
31.146.ac (02)
1
7
8
5
3
4
6
2
31.146.aa (02)
31.146.ac (02)

Артикул

Название

Примечание

Количество

1

84265034

GEARBOX

ASSY, Incl 2 - 7

1шт.

See also Figure 31.146.AA (02), 31.146.AC (02)

1шт.

2

47126760

TUBE

1шт.

3

4996762

RETAINER,40.2mm ID x 62mm OD x 6mm L

1шт.

4

87350856

SEAL,38.4mm ID x 62mm OD x 10mm Thk

1шт.

5

20973340

BALL BEARING,55.00mm x 100.00mm x 21.00mm

1шт.

6

84265032

GEAR,53T

Output Front PTO, Z 53

1шт.

7

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

1шт.

8

718041054

DIA KIT, TRACTOR

Front Power Take-Off W/6 Splines, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

719098114

DIA KIT, TRACTOR

Front Power Take-Off for Hydraulic Power Lift W/6 Splines, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 12
