Запчасти Case IH MAXXUM 115 (31.146.AA[01]) - VAR - 743700 - FRONT PTO W/ 6 SPLINES, DRIVE SHAFT (31) - IMPLEMENT POWER TAKE OFF

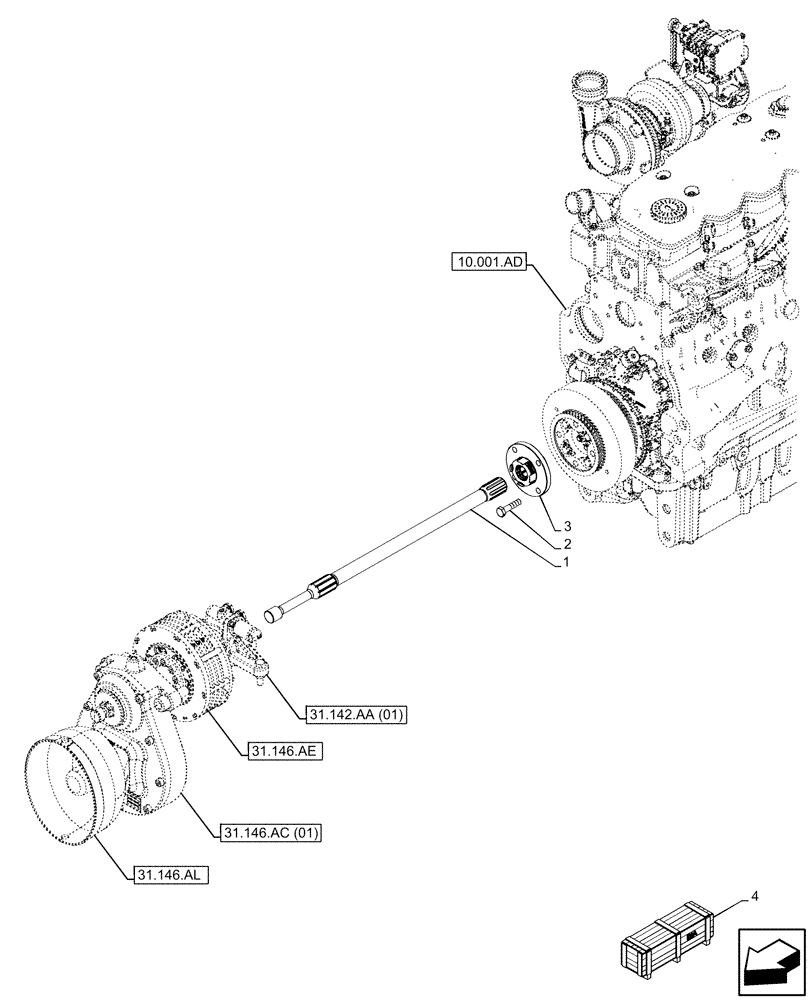

Схема запчастей Case IH MAXXUM 115 - (31.146.AA[01]) - VAR - 743700 - FRONT PTO W/ 6 SPLINES, DRIVE SHAFT (31) - IMPLEMENT POWER TAKE OFF
10.001.ad
1
2
3
4
31.146.al
31.146.ae
31.142.aa (01)
31.146.ac (01)

Артикул

Название

Примечание

Количество

1

87351594

DRIVE SHAFT,644mm L

644mm

1шт.

2

15215724

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

4шт.

3

47565082

DAMPER,121.95mm OD

1шт.

4

719098114

DIA KIT, TRACTOR

Front Power Take-Off for Hydraulic Power Lift W/6 Splines, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 5
