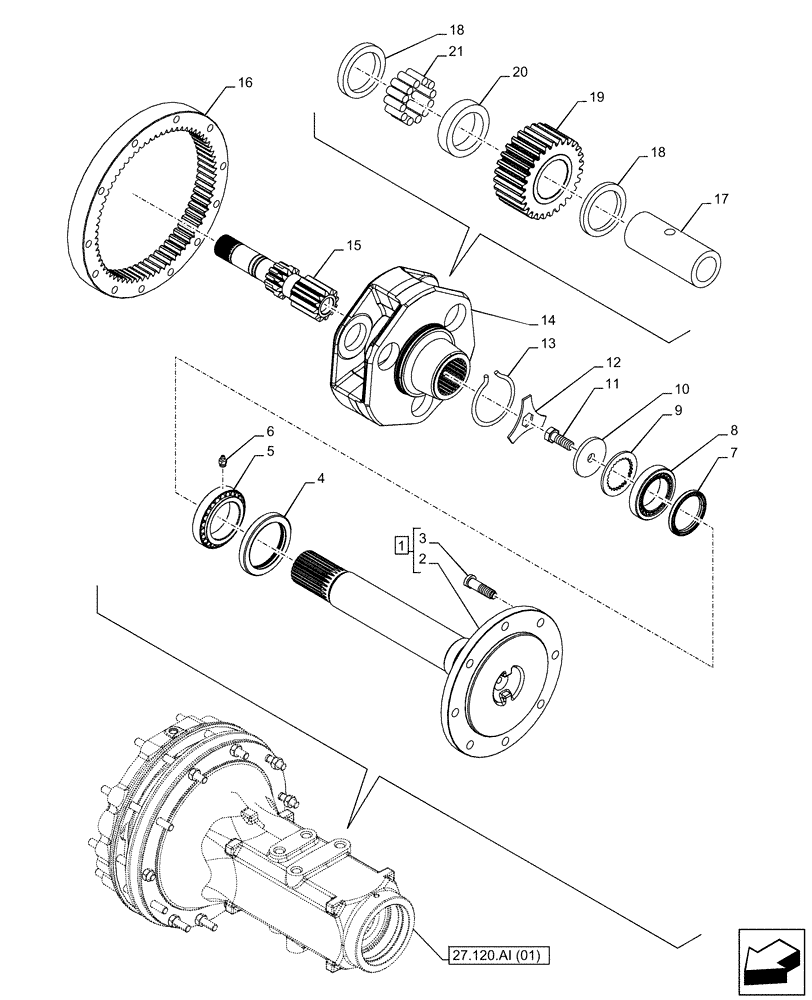

Запчасти Case IH MAXXUM 115 (27.120.AF[01]) - VAR - 391223, 392197, 758430 - FINAL DRIVE, SHAFT & GEAR (27) - REAR AXLE SYSTEM

1

84428179

AXLE

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Drive Axle, 559.5mm, Incl in 1

1шт.

3

87651028

STUD,Wheel, M18 x 1.5 x 65mm, Cl 10.9

8шт.

4

5149310

SEAL,100mm ID x 130mm OD x 16mm Thk

1шт.

5

24903490

BEARING ASSY,80mm ID x 125mm OD x 29mm W

1шт.

6

13407211

LUBE NIPPLE,M10 x 1

1шт.

7

5152364

OIL SEAL,75mm ID x 95mm OD x 10mm Thk

1шт.

8

24903470

BEARING ASSY,70mm ID x 110mm OD x 25mm W

1шт.

9

5152126

THRUST WASHER,64mm ID x 70.5mm OD x 5mm Thk

1шт.

10

4996965

DISC,18.5mm ID x 82mm OD x 8mm Thk

1шт.

11

47638419

BOLT,Hex, M18 x 1.50 x 50mm, Cl 10.9

1шт.

12

47621155

PLATE

1шт.

13

4998880

SNAP RING,4mm Thk, Ext

1шт.

14

47523097

PLANET CARRIER

1шт.

15

47523091

DRIVE SHAFT,294mm L

294mm

1шт.

16

5191492

RING GEAR,69T

Z 69

1шт.

17

5145988

PIN

3шт.

18

5145983

THRUST WASHER,53.6mm ID x 84mm OD x 1mm Thk

6шт.

19

47123857

GEAR,28T

Z 28

3шт.

20

5145984

SPACER

3шт.

21

5145981

ROLLER BEARING,55.5mm ID x 67.5mm OD x 52mm W

3шт.
