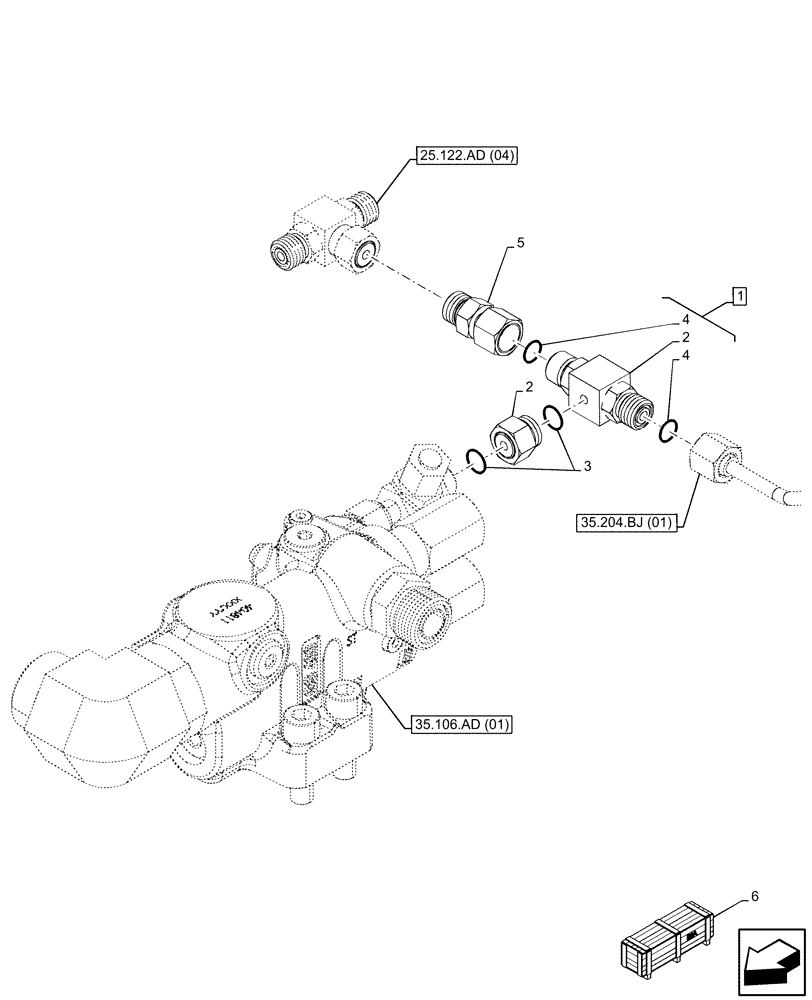

Запчасти Case IH MAXXUM 115 (25.122.AD[03]) - VAR - 743689, 743690, 758445 - FRONT AXLE, SUSPENDED, CHECK VALVE (25) - FRONT AXLE SYSTEM

1

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

4

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

5

47483795

HYD CONNECTOR

1шт.

6

719763094

DIA KIT, TRACTOR

Electronic Mid Mount Valve Kit (2 Slice), W/O Joystick, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

718223014

DIA KIT, TRACTOR

Electronic Mid Mount Valve Kit (1 Slice), W/O Joystick, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

718229014

DIA KIT, TRACTOR

Electronic Mid Mount Valve Kit (2 Slice), W/O Joystick, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
