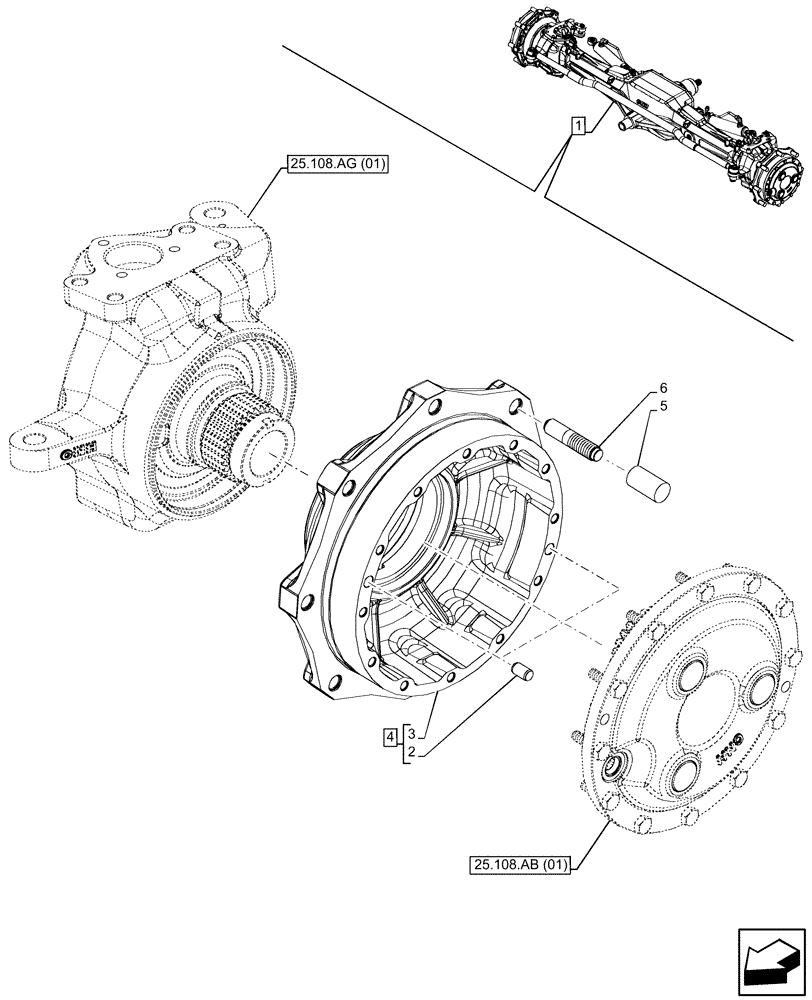

Запчасти Case IH MAXXUM 115 (25.108.AN[01]) - VAR - 390409, 758420, 758421 - FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, W/O WATERPROOF, STEERING KNUCKLE (25) - FRONT AXLE SYSTEM

1

84180953

LIVE FRONT AXLE

ASSY, Incl 2 - 6

1шт.

See also Axle Components in Figure 25.100.AA (01), 25.100.AD (01), 25.108.AA (01), 25.108.AB (02), 25.108.AG (01), 55.047.AA (01), 41.216.AN (01)

1шт.

2

4985063

DOWEL,12mm OD x 20mm L

12mm x x20mm

2шт.

3

NSS

NOT SOLD SEPARAT

Hub, Incl in 4

1шт.

4

87529959

HUB

ASSY, Incl 2, 3

1шт.

5

87671955

CAP,15.50mm ID x 22.00mm OD x 40.00mm

8шт.

6

87618916

STUD

8шт.
