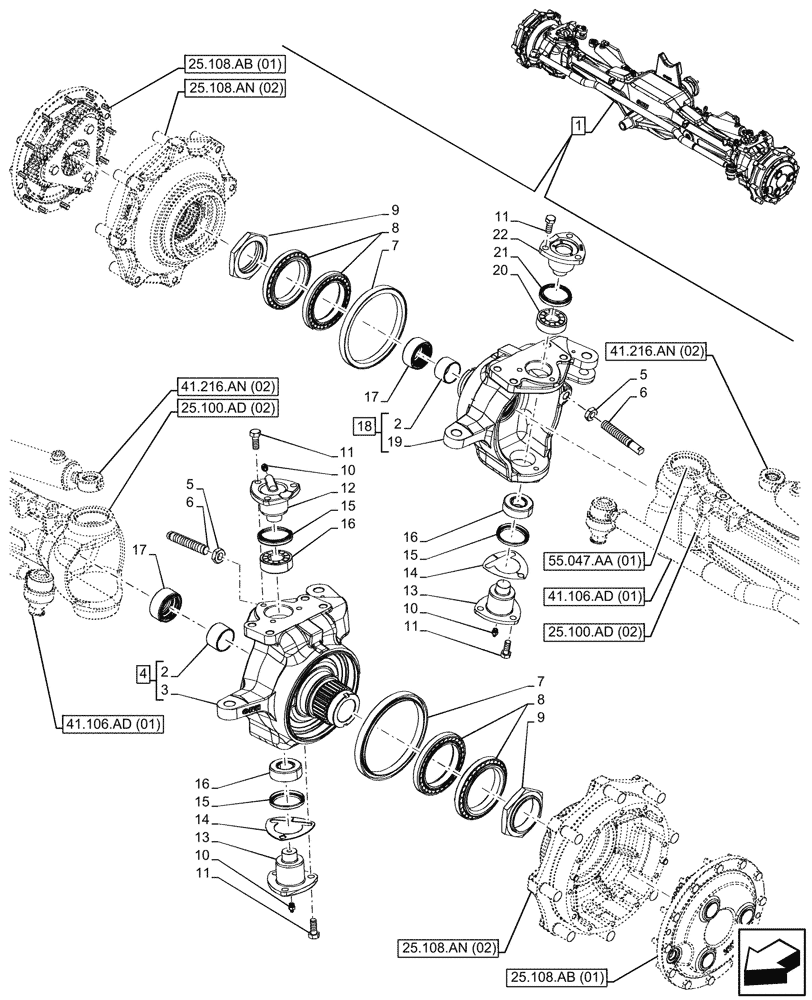

Запчасти Case IH MAXXUM 115 (25.108.AG[02]) - VAR - 758422 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, STEERING KNUCKLE (25) - FRONT AXLE SYSTEM

1

84181140

LIVE FRONT AXLE

ASSY, Incl 2 - 22

1шт.

See also Axle Components in Figure 25.100.AA (02), 25.100.AD (02), 25.108.AA (02), 25.108.AB (03), 25.108.AN (02), 41.216.AN (02), 55.047.AA (02)

1шт.

2

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

45mm ID x 50mm OD x 30mm

1шт.

3

NSS

NOT SOLD SEPARAT

Knucle, Incl in 1

1шт.

4

84196849

KNUCKLE,LH

ASSY, LH, Incl 2 (Qty 1), 3

1шт.

5

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

6

87751873

SCREW,M18 x 105mm, Cl 10.9

2шт.

7

87309584

OIL SEAL,165mm ID x 190mm OD x 16.5mm Thk

1шт.

8

47539809

TAPERED BEARING,95mm ID x 135mm OD x 20mm L

2шт.

9

5142020

NUT,Hex, M75 x 2

1шт.

10

13407211

LUBE NIPPLE,M10 x 1

3шт.

11

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

12

87361688

BALL STUD

1шт.

13

87333763

BALL STUD

2шт.

14

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

2шт.

14

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

14

5137458

SHIM,56.5mm ID x 97mm OD x 0.2mm Thk

1шт.

14

5137459

SHIM,56.5mm ID x 97mm OD x 0.25mm Thk

1шт.

14

5137460

SHIM,56.5mm ID x 97mm OD x 0.3mm Thk

1шт.

15

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

3шт.

16

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

3шт.

17

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

2шт.

18

84196952

KNUCKLE,RH

ASSY, RH, Incl 2 (Qty 1), 19

1шт.

19

NSS

NOT SOLD SEPARAT

Knucle, Incl in 18

1шт.

20

47137677

SPH ROLLER BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

1шт.

21

47137702

SEAL,56mm ID x 70mm OD x 10mm Thk

1шт.

22

87382577

BALL STUD

1шт.
