Запчасти Case IH MAXXUM 115 (25.108.AB[02]) - VAR - 390409, 758420, 758421 - FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, W/O WATERPROOF, STEERING KNUCKLE, PLANETARY REDUCER (25) - FRONT AXLE SYSTEM

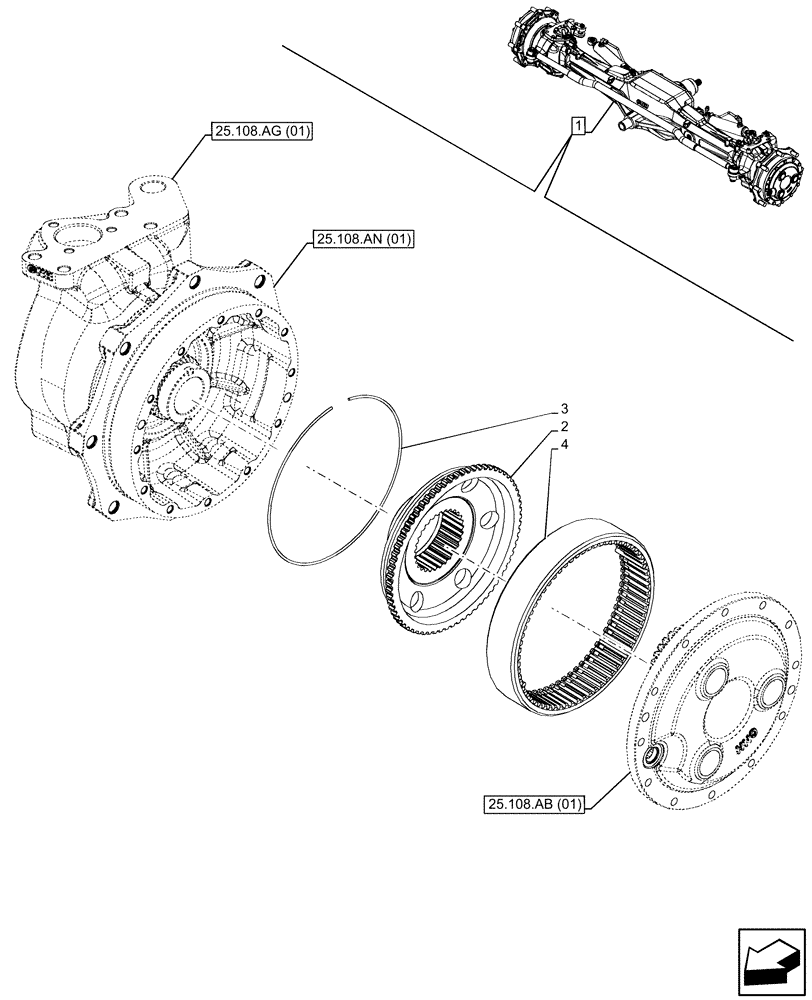

Схема запчастей Case IH MAXXUM 115 - (25.108.AB[02]) - VAR - 390409, 758420, 758421 - FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, W/O WATERPROOF, STEERING KNUCKLE, PLANETARY REDUCER (25) - FRONT AXLE SYSTEM
25.108.an (01)
1
2
4
3
25.108.ag (01)
25.108.ab (01)

Артикул

Название

Примечание

Количество

1

84180953

LIVE FRONT AXLE

ASSY, Incl 2 - 4

1шт.

See also Axle Components in Figure 25.100.AA (01), 25.100.AD (01), 25.108.AA (01), 25.108.AG (01), 25.108.AN (01), 55.047.AA (01), 41.216.AN (01)

1шт.

2

84224948

NOTCHED DISK

1шт.

3

5151438

LOCKING RING,222mm ID, Int

1шт.

4

5191770

RING GEAR

1шт.

Выбрано товаров: 5
