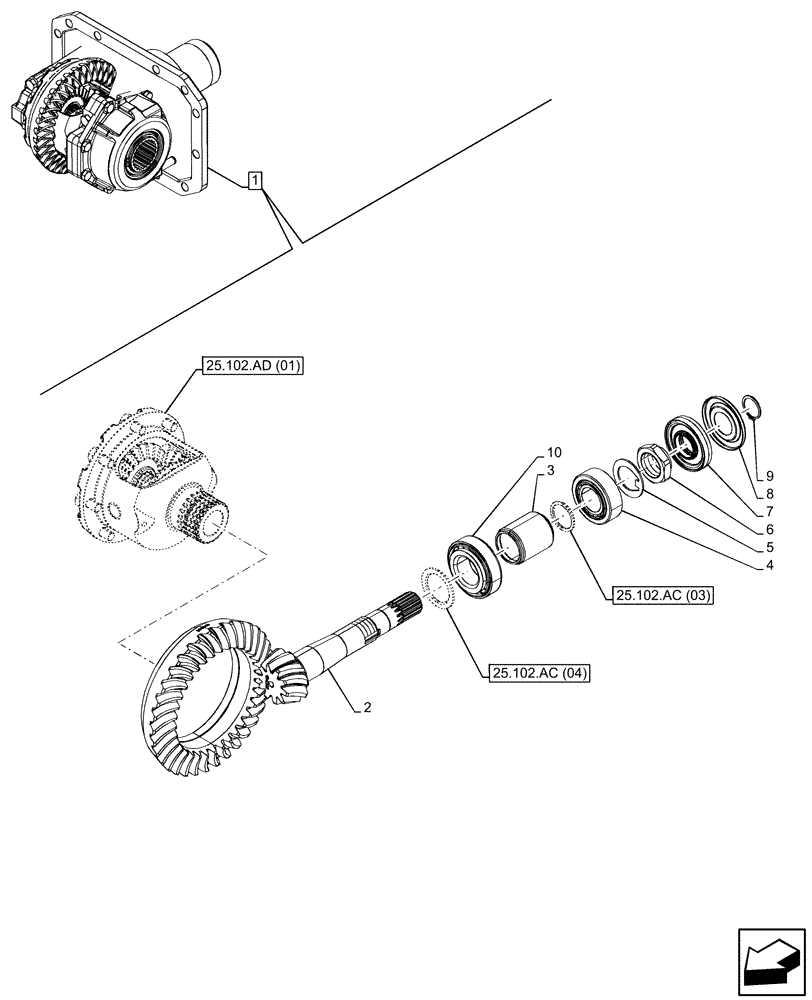

Запчасти Case IH MAXXUM 115 (25.102.AC[02]) - VAR - 390409, 758420, 758421 - FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, W/O WATERPROOF, DIFFERENTIAL, BEVEL GEAR (25) - FRONT AXLE SYSTEM

1

87530114

DIFFERENTIAL ASSY

ASSY, Incl 2 - 10

1шт.

See also Differential Components in Figure 25.102.AC (01), 25.102.AC (03), 25.102.AC (04), 25.102.AD (01), 25.102.AS (01)

1шт.

2

84527568

GEAR SET,Ring and Pinion, Ratio 10/34

1шт.

3

5169235

SPACER,35.4mm ID x 42mm OD x 63.5mm L

1шт.

4

5133776

TAPERED BEARING,35.00mm x 72.00mm x 28.00mm

1шт.

5

84285936

SPECIAL WASHER

1шт.

6

84289068

CROWN NUT,M35 x 1.5

1шт.

7

87349652

SEAL,32.5mm ID x 75mm OD x 15mm Thk

1шт.

8

87527839

SEAL PROTECTION

1шт.

9

11062676

SNAP RING,M95, Int

1шт.

10

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

1шт.
