(25.100.AV[09]) - VAR - 390811, 390926, 744790, 758582 - FRONT AXLE SUPPORT, PLUGS

Запчасти Case IH MAXXUM 115 (25.100.AV[09]) - VAR - 390811, 390926, 744790, 758582 - FRONT AXLE SUPPORT, PLUGS (25) - FRONT AXLE SYSTEM

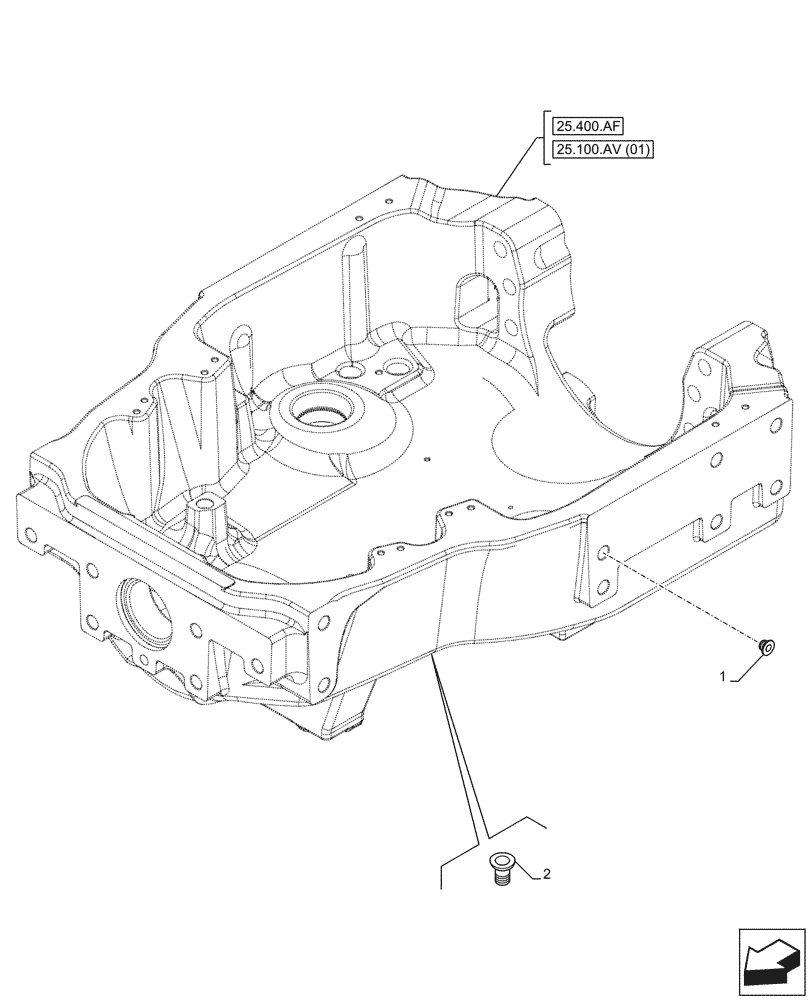

Схема запчастей Case IH MAXXUM 115 - (25.100.AV[09]) - VAR - 390811, 390926, 744790, 758582 - FRONT AXLE SUPPORT, PLUGS (25) - FRONT AXLE SYSTEM
25.100.av (01)
2
1
25.400.af
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

16шт.

2

82036858

COVER

2шт.

Without Front Hydraulic Power Lift

1шт.
