(25.100.AV[07]) - VAR - 743699, 743700 - 4WD FRONT AXLE, INTEGRATED HYDRAULIC LIFT, SUPPORT, ATTACHMENT

Запчасти Case IH MAXXUM 115 (25.100.AV[07]) - VAR - 743699, 743700 - 4WD FRONT AXLE, INTEGRATED HYDRAULIC LIFT, SUPPORT, ATTACHMENT (25) - FRONT AXLE SYSTEM

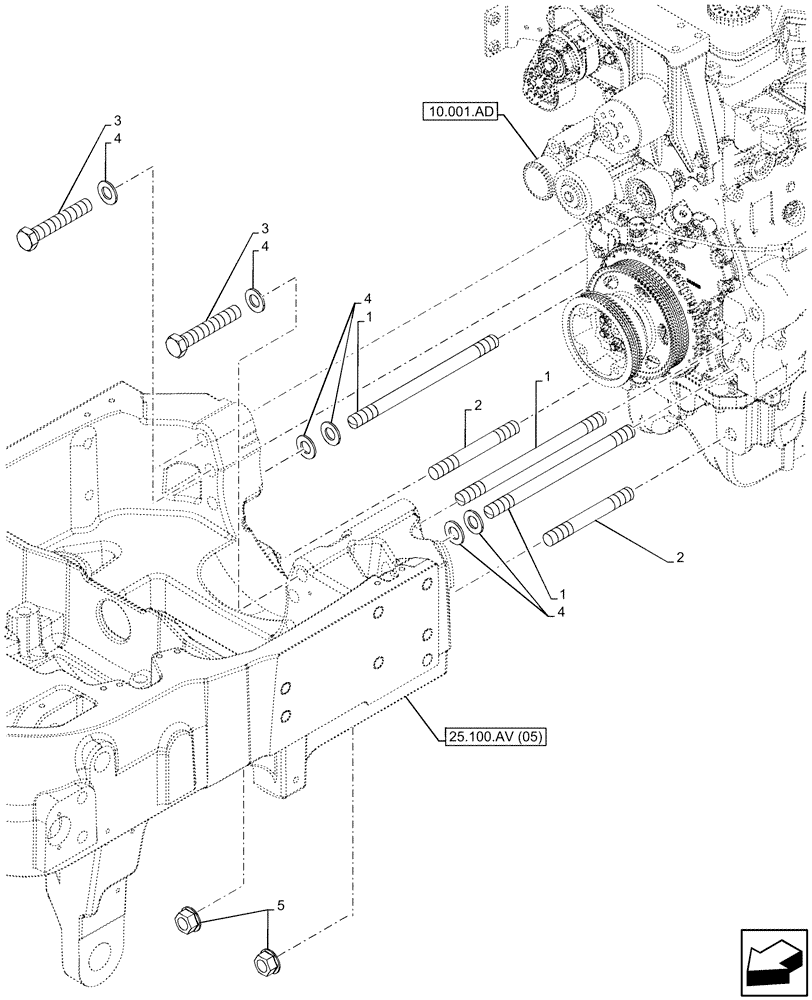

Схема запчастей Case IH MAXXUM 115 - (25.100.AV[07]) - VAR - 743699, 743700 - 4WD FRONT AXLE, INTEGRATED HYDRAULIC LIFT, SUPPORT, ATTACHMENT (25) - FRONT AXLE SYSTEM
10.001.ad
3
1
4
2
5
4
1
2
4
4
1
3
25.100.av (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87333612

STUD,M20 x 1.5 x 295mm, Cl 12.9

3шт.

2

87301866

STUD,M20 x 1.5 x 170mm, Cl 10.9

M20 x 1.5

2шт.

3

82028028

BOLT,Hex, M20 x 1.5 x 118mm, Cl 12.9

3шт.

4

82028022

WASHER,M8 x 1.25 ID x 40mm OD x 9mm Thk, CRLC or HRLC Steel

6шт.

5

87312644

NUT,Hex, M20, 1.5 Pitch, 16mm High, Gr R12

2шт.
