(25.100.AA[01]) - VAR - 390409, 758420, 758421 - FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, W/O WATERPROOF

Запчасти Case IH MAXXUM 115 (25.100.AA[01]) - VAR - 390409, 758420, 758421 - FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, W/O WATERPROOF (25) - FRONT AXLE SYSTEM

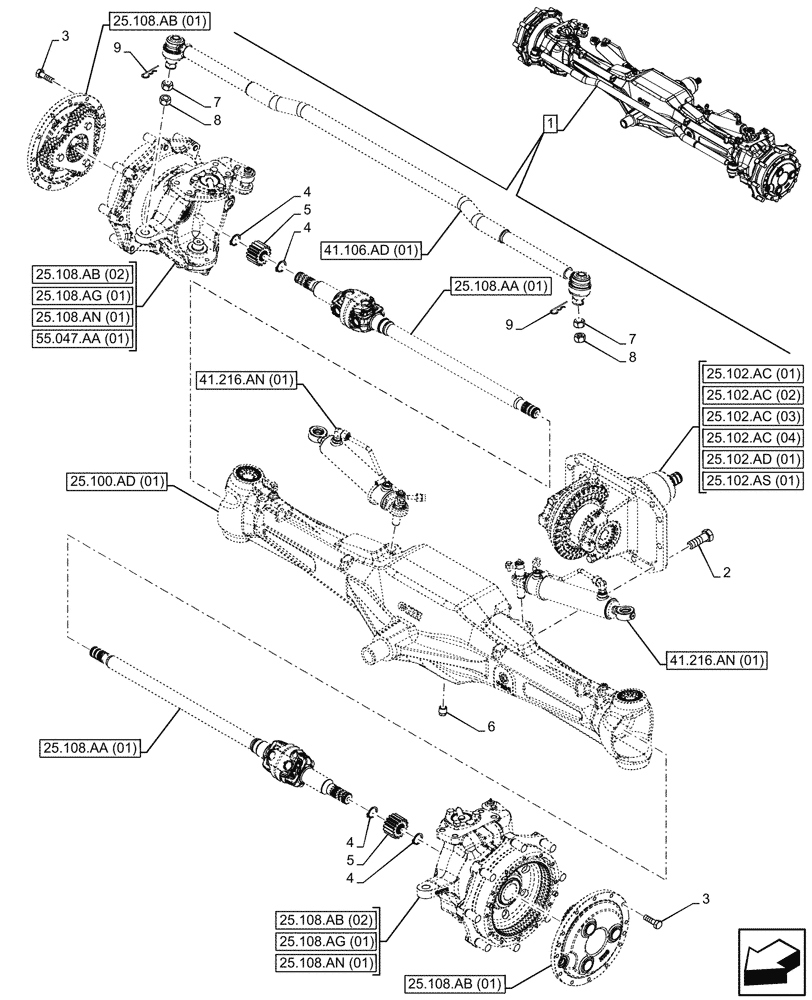

Схема запчастей Case IH MAXXUM 115 - (25.100.AA[01]) - VAR - 390409, 758420, 758421 - FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, W/O WATERPROOF (25) - FRONT AXLE SYSTEM
25.102.ac (04)
1
5
3
9
9
4
4
7
4
2
3
5
8
7
8
6
25.108.aa (01)
25.108.aa (01)
4
25.108.ab (01)
25.108.ab (01)
25.108.an (01)
25.108.an (01)
25.102.ac (01)
55.047.aa (01)
25.102.ac (03)
25.100.ad (01)
25.102.as (01)
41.216.an (01)
41.216.an (01)
25.108.ag (01)
25.108.ag (01)
41.106.ad (01)
25.102.ac (02)
25.102.ad (01)
25.108.ab (02)
25.108.ab (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84180953

LIVE FRONT AXLE

ASSY, Incl 2 - 9

1шт.

2

16217734

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

10шт.

3

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

4

5140018

SNAP RING,M30, Ext

4шт.

5

5145501

SUN GEAR,16T

Z 16

2шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

7

12576014

NUT,Prevailing Torque, M18, 1.5mm Pitch, 16.00mm High, Cl 04, DAC

2шт.

Use for all Ball Except for Ehrenreich Ball

1шт.

8

10724614

SLOTTED NUT,Thin Slotted, M18, 1.5mm Pitch, 15.00mm High, R80, DAC

2шт.

Use only for Ehrenreich Ball

1шт.

9

10733804

COTTER PIN,4.00mm Dia x 16.00mm

2шт.

Use only for Ehrenreich Ball

1шт.
