Запчасти Case IH MAXXUM 115 (21.152.AE[03]) - VAR - 392195, 392204, 743764, 743766, 758413, 758414, 758415, 758416, 758581, 759375, 759377, 759379 - TRANSMISSION, CENTRAL REDUCTION GEAR (21) - TRANSMISSION

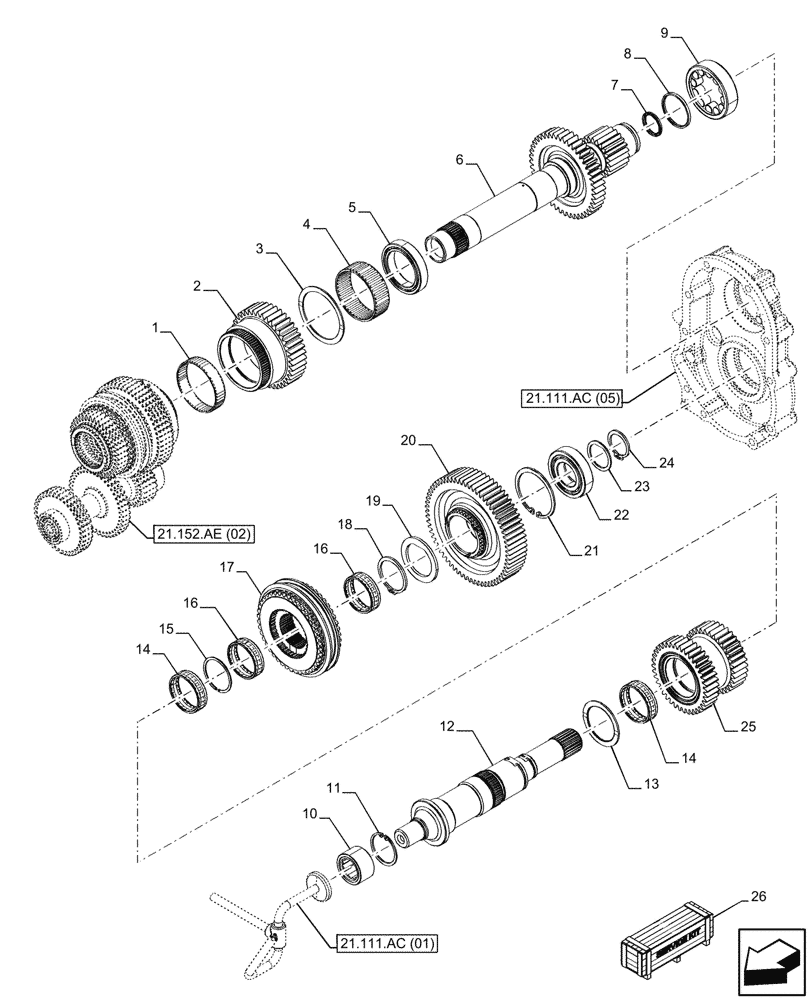

Схема запчастей Case IH MAXXUM 115 - (21.152.AE[03]) - VAR - 392195, 392204, 743764, 743766, 758413, 758414, 758415, 758416, 758581, 759375, 759377, 759379 - TRANSMISSION, CENTRAL REDUCTION GEAR (21) - TRANSMISSION
21.111.ac (05)
16
16
13
3
14
11
5
20
21
14
10
8
9
1
4
17
18
25
7
24
6
23
26
19
2
12
15
22
21.152.ae (02)
21.111.ac (01)

Артикул

Название

Примечание

Количество

1

81863561

BEARING ASSY,80mm ID x 86mm OD x 19.8mm W

1шт.

2

87396958

GEAR

Clutch Output 40 KPH, Z 41

1шт.

3

81863743

THRUST WASHER,Grooved, 80.2mm ID x 96.2mm OD x 2.1mm Thk

1шт.

4

81863562

BEARING ASSY,80mm ID x 88mm OD x 29.8mm W

1шт.

5

82857005

BEARING ASSY,59.98mm ID x 84.98mm OD x 15.95mm W

1шт.

6

87396959

DRIVE SHAFT,415mm L

Transmission Output, 415mm

1шт.

7

47137455

OIL SEAL,32mm ID x 40mm OD x 4mm Thk

1шт.

8

81863725

SPACER

1шт.

9

81863141

BEARING ASSY,52mm ID x 89.98mm OD x 22.88mm W

1шт.

10

81863940

BEARING ASSY,Needle, 31mm ID x 52mm OD x 29mm W

1шт.

11

11061976

SNAP RING,M80, Int

1шт.

12

47127095

SHAFT,371.5mm L

Transmission Output, 371.5mm

1шт.

13

81866547

THRUST WASHER,58.4mm ID x 76mm OD x 2.45mm Thk

1шт.

14

81863574

BEARING ASSY,58mm ID x 65mm OD x 17.8mm W

2шт.

15

47126700

SNAP RING

1шт.

16

81863673

BEARING ASSY,Needle, 55mm ID x 61.99mm OD x 17.8mm W

2шт.

17

5196249

SYNCHRONIZER

1шт.

18

5134792

SNAP RING,50.80mm ID, 3mm Thk

1шт.

19

5199957

SPACER

1шт.

20

47127127

DRIVEN GEAR

Low Speed, Z 65

1шт.

21

11060576

SNAP RING,M52, Int

1шт.

22

81863568

BEARING ASSY

1шт.

23

81869768

WASHER

1шт.

24

81863365

RING

1шт.

25

87396960

GEAR

Transmission Output, 100.8mm

1шт.

26

47798580

GEARBOX

Transmission ASSY, Incl 1 - 25

1шт.

See all the Included Components by Searching for the PN 47798580

1шт.

Выбрано товаров: 27
