Запчасти Case IH MAXXUM 115 (21.133.AK[02]) - VAR - 392195, 392204, 743764, 743766, 758413, 758414, 758415, 758416, 758581, 759375, 759377, 759379 - TRANSMISSION CONTROL VALVE (21) - TRANSMISSION

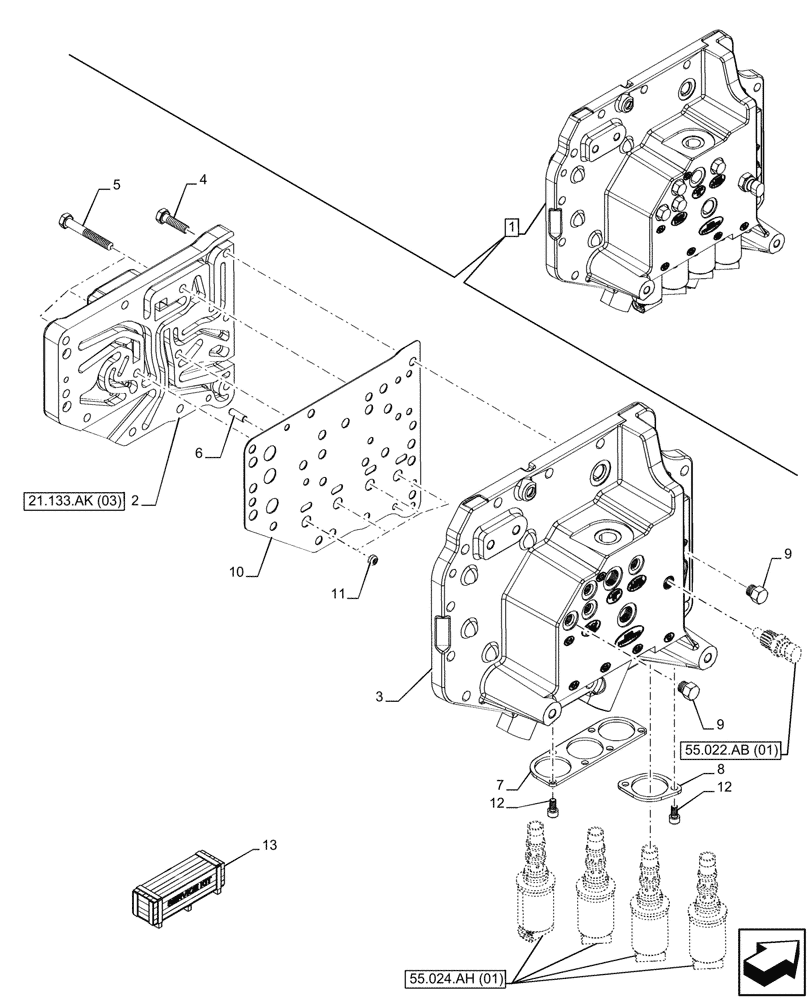

Схема запчастей Case IH MAXXUM 115 - (21.133.AK[02]) - VAR - 392195, 392204, 743764, 743766, 758413, 758414, 758415, 758416, 758581, 759375, 759377, 759379 - TRANSMISSION CONTROL VALVE (21) - TRANSMISSION
55.022.ab (01)
12
5
4
12
11
3
6
1
9
8
13
9
2
10
7
21.133.ak (03)
55.024.ah (01)

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

ASSY, Incl 2 - 12

1шт.

See Also Figures 55.024.AH 01, 55.022.AB 01

1шт.

2

82021820

HYDRAULIC VALVE

Lubrication Control, ASSY

1шт.

3

47132363

COVER

1шт.

4

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

9шт.

5

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

3шт.

6

82969407

PIN

2шт.

7

5198334

PLATE

1шт.

8

5194826

BRACKET

1шт.

9

9672438

PLUG,7/16" - 20 ORB

8шт.

10

82012862

GASKET,1mm Thk

1шт.

11

82001857

RESTRICTOR

4шт.

12

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

8шт.

13

47798580

GEARBOX

Transmission ASSY, Incl 1 - 12

1шт.

See all the Included Components by Searching for the PN 47798580

1шт.

Выбрано товаров: 15
