Запчасти Case IH MAXXUM 115 (21.130.BF[05]) - SERVICE KIT, TRANSMISSION HOUSING, COVER (21) - TRANSMISSION

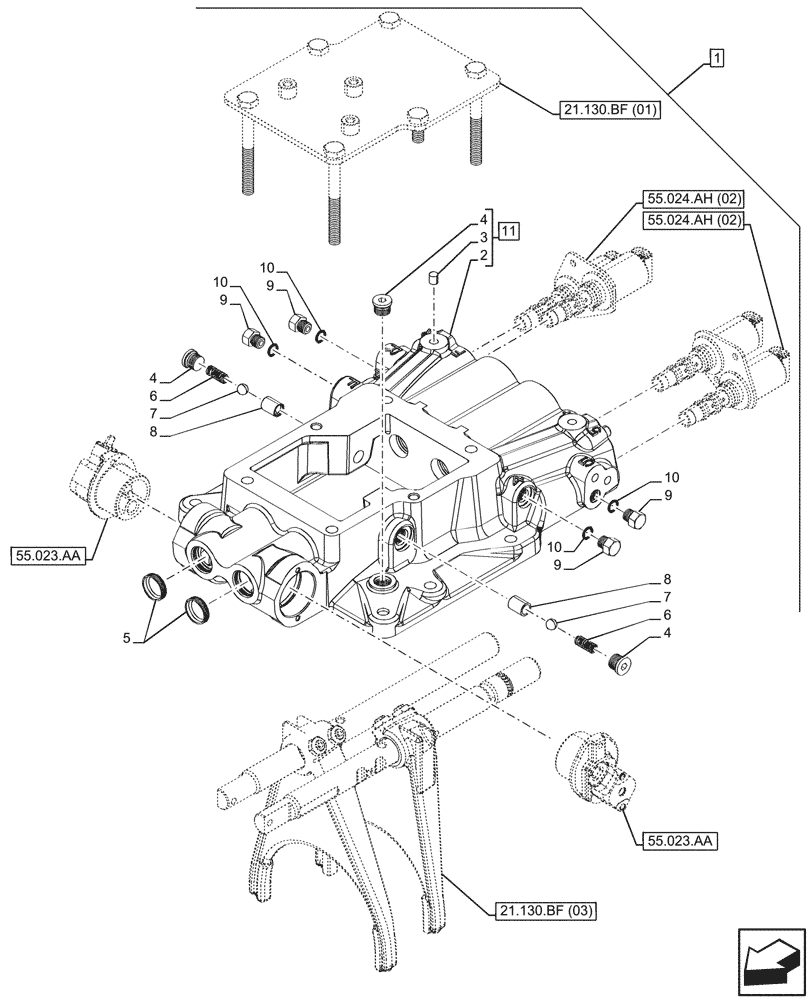

Схема запчастей Case IH MAXXUM 115 - (21.130.BF[05]) - SERVICE KIT, TRANSMISSION HOUSING, COVER (21) - TRANSMISSION
55.024.ah (02)
3
10
10
2
9
10
6
7
8
1
8
5
9
4
7
6
4
9
4
9
11
10
21.130.bf (03)
21.130.bf (01)
55.023.aa
55.023.aa
55.024.ah (02)

Артикул

Название

Примечание

Количество

1

47798580

GEARBOX

Transmission ASSY, Incl 2 -11

1шт.

2

14536490

PLUG,8.00mm Dia x 15.70mm L

12шт.

3

NSS

NOT SOLD SEPARAT

Cover, Incl in 11

1шт.

4

9625178

PLUG,9/16" - 18 ORB

3шт.

5

83417039

PLUG

2шт.

6

83407013

SPRING

2шт.

7

88210005

BALL,10mm OD

2шт.

8

81864220

PLUNGER

2шт.

9

9672438

PLUG,7/16" - 20 ORB

4шт.

10

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4шт.

11

47127526

COVER ASSY

Incl 2 - 4 (Qty 1)

1шт.

Выбрано товаров: 11
