Запчасти Case IH MAXXUM 115 (21.130.BF[04]) - SERVICE KIT, TRANSMISSION HOUSING, COVER, MOUNTING (21) - TRANSMISSION

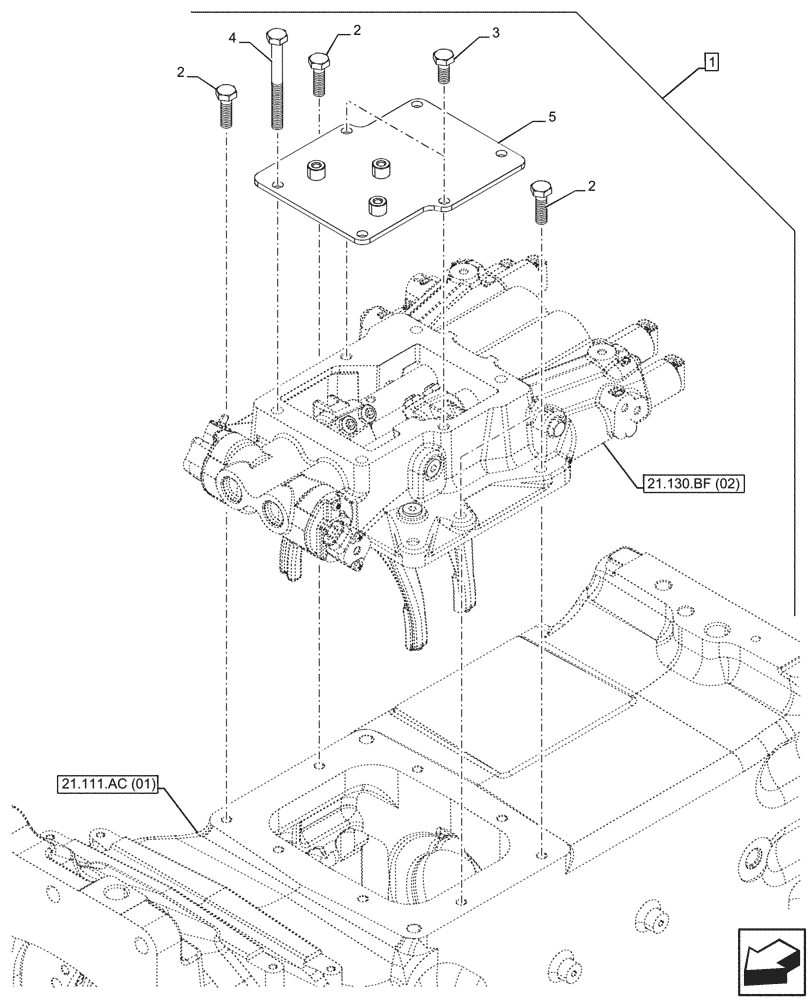

Схема запчастей Case IH MAXXUM 115 - (21.130.BF[04]) - SERVICE KIT, TRANSMISSION HOUSING, COVER, MOUNTING (21) - TRANSMISSION
21.130.bf (02)
3
1
4
2
2
2
5
21.111.ac (01)

Артикул

Название

Примечание

Количество

1

47798580

GEARBOX

Transmission ASSY, Incl 2 - 5

1шт.

2

15971824

SCREW,Hex, M10 x 1.25 x 100mm, Cl 8.8

4шт.

3

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

4

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

4шт.

5

84488514

PLATE

1шт.

Выбрано товаров: 5
