Запчасти Case IH MAXXUM 115 (21.118.AF[01]) - VAR - 392195, 392204, 743764, 743766, 758413, 758414, 758415, 758416, 758581, 759375, 759377, 759379 - TRANSMISSION HOUSING, REAR, MOUNTING (21) - TRANSMISSION

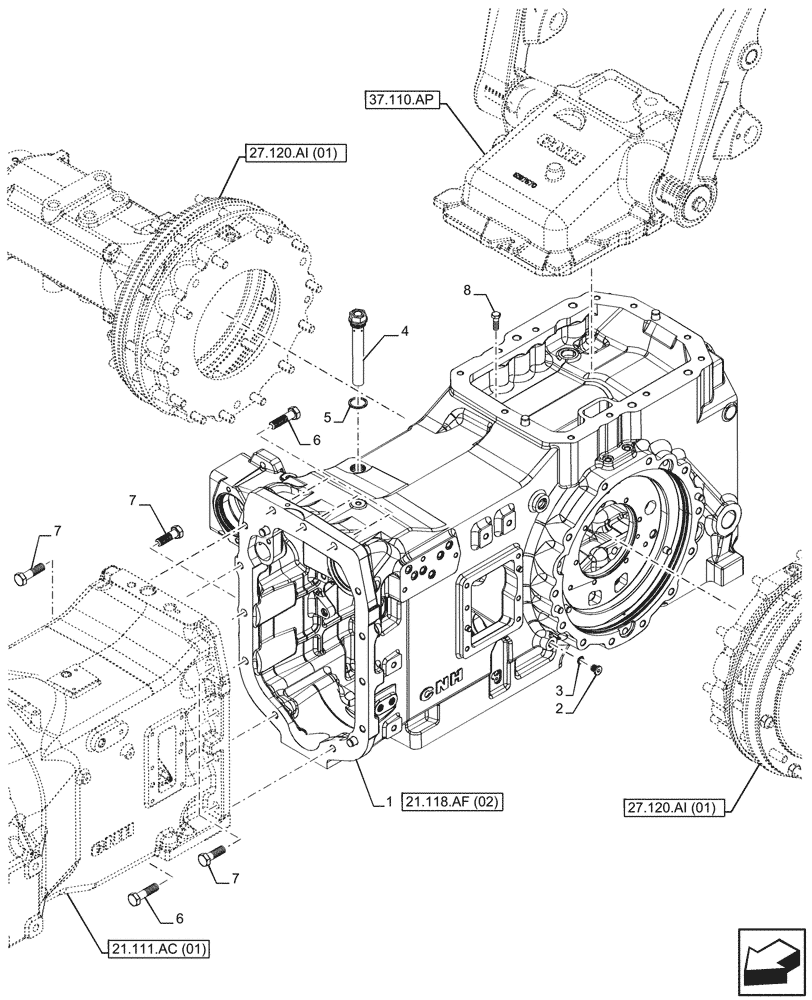

Схема запчастей Case IH MAXXUM 115 - (21.118.AF[01]) - VAR - 392195, 392204, 743764, 743766, 758413, 758414, 758415, 758416, 758581, 759375, 759377, 759379 - TRANSMISSION HOUSING, REAR, MOUNTING (21) - TRANSMISSION
27.120.ai (01)
6
4
5
7
7
7
6
8
3
2
1
21.118.af (02)
21.111.ac (01)
37.110.ap
27.120.ai (01)

Артикул

Название

Примечание

Количество

1

47561279

TRANSMISSION HOUSING

ASSY

1шт.

2

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

3

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

4

47133085

BREATHER

1шт.

5

10262160

SEAL,M28.4 x 34 x 2, Copper

1шт.

6

11422034

BOLT,Hex, M15 x 55mm, Class 10.9

5шт.

7

11394334

BOLT,Hex, M14 x 1.5 x 45, 8.8, Full Thd

8шт.

8

15970424

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 8
