Запчасти Case IH MAXXUM 115 (21.109.AE[01]) - VAR - 394835, 758441 - OIL COOLER LINE, BY-PASS VALVE (21) - TRANSMISSION

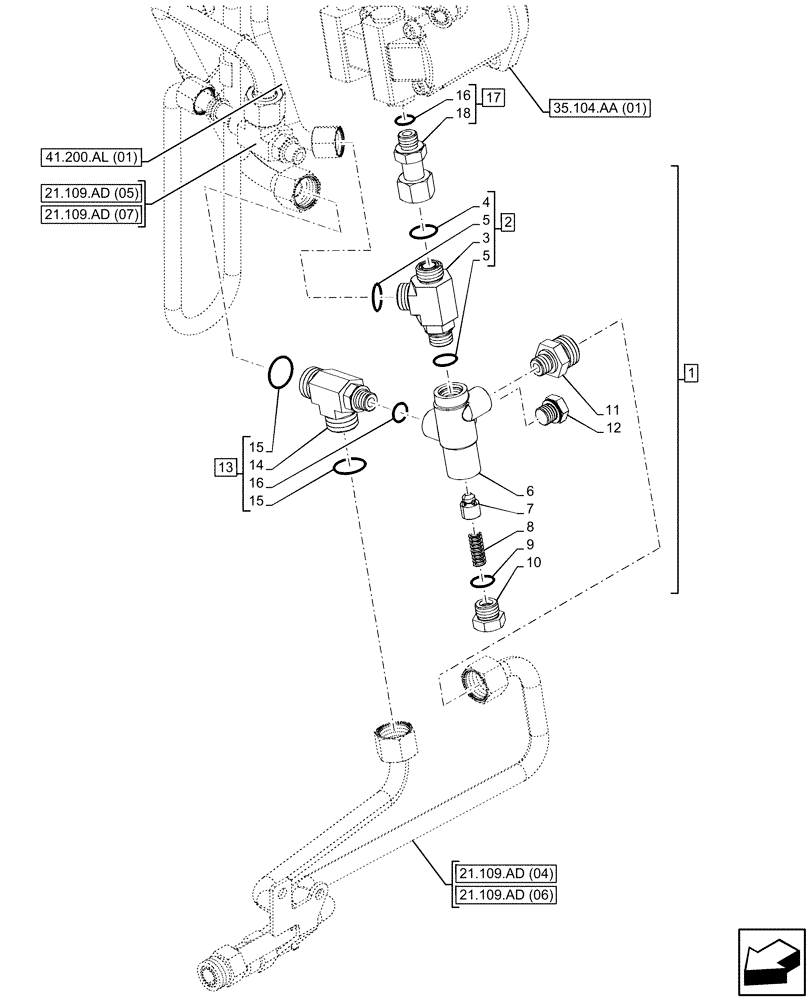

Схема запчастей Case IH MAXXUM 115 - (21.109.AE[01]) - VAR - 394835, 758441 - OIL COOLER LINE, BY-PASS VALVE (21) - TRANSMISSION
35.104.aa (01)
11
18
9
6
7
8
2
15
14
10
5
16
12
3
5
15
13
17
16
1
4
21.109.ad (07)
21.109.ad (06)
21.109.ad (05)
21.109.ad (04)
41.200.al (01)

Артикул

Название

Примечание

Количество

1

47532337

VALVE

ASSY, Incl 2 - 16

1шт.

2

86579705

TEE,1"-14 ORFS x M22 x 1.5 ORB Run

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Tee, Incl in 2

1шт.

4

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

5

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

6

47532338

FITTING

Valve, Incl 1

1шт.

7

5169565

VALVE,By-Pass

1шт.

8

5159185

SPRING,Compression, 12.5mm OD x 32.5mm L

1шт.

9

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

10

47123781

PLUG,M22 x 1.5

1шт.

11

87530371

FITTING

1шт.

12

87030025

PLUG,Hex, M18 x 1.5 ORB

1шт.

13

NSS

NOT SOLD SEPARAT

ASSY, Incl 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

Tee, Incl in 13

1шт.

15

81825117

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

16

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

17

84168451

HYD CONNECTOR

ASSY, Incl 16, 18

1шт.

18

NSS

NOT SOLD SEPARAT

Connector, Incl in 17

1шт.

Выбрано товаров: 18
