Запчасти Case IH MAXXUM 115 (21.109.AD[07]) - VAR - 394835, 758441 - OIL COOLER LINE (21) - TRANSMISSION

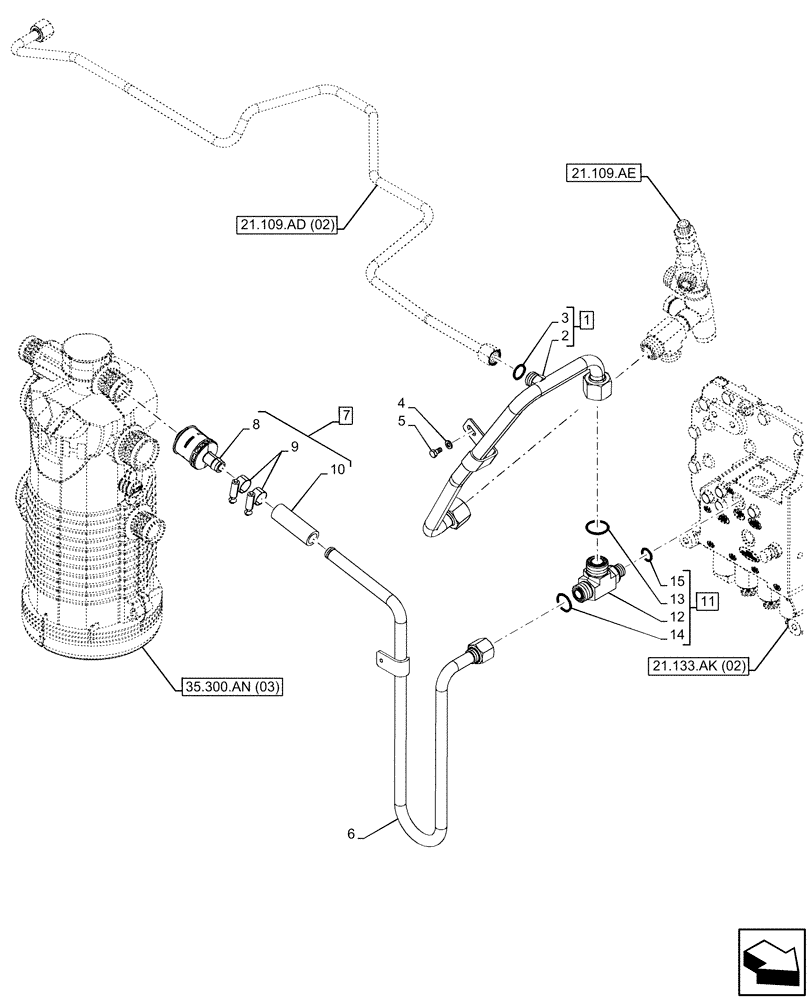

Схема запчастей Case IH MAXXUM 115 - (21.109.AD[07]) - VAR - 394835, 758441 - OIL COOLER LINE (21) - TRANSMISSION
21.109.ad (02)
8
12
3
7
10
15
4
1
6
2
14
11
9
5
13
21.133.ak (02)
35.300.an (03)
21.109.ae

Артикул

Название

Примечание

Количество

1

47491346

PIPE

By-pass Valve, ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

3

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

4

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

5

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

6

84352582

HYD TUBE

Pressure

1шт.

7

84352585

HYD CONNECTOR

ASSY, Incl 8 - 10

1шт.

8

87330801

HYD CONNECTOR,21mm D x 12.5mm D

1шт.

9

82039344

HOSE CLAMP,20mm - 32mm

2шт.

10

84352586

HOSE,15.9mm ID x 70mm L, SAE 100R6

1шт.

11

84301632

HYD CONNECTOR

ASSY, Incl 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

Tee, Incl in 11

1шт.

13

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

14

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

15

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Выбрано товаров: 15
