(90.160.BL[04]) - VAR - 392204, 743764, 743766, 758414, 758416, 758581 - CAB INTERIOR TRIM, ELECTRONIC CONTROLS, RH

Запчасти Case IH MAXXUM 115 (90.160.BL[04]) - VAR - 392204, 743764, 743766, 758414, 758416, 758581 - CAB INTERIOR TRIM, ELECTRONIC CONTROLS, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

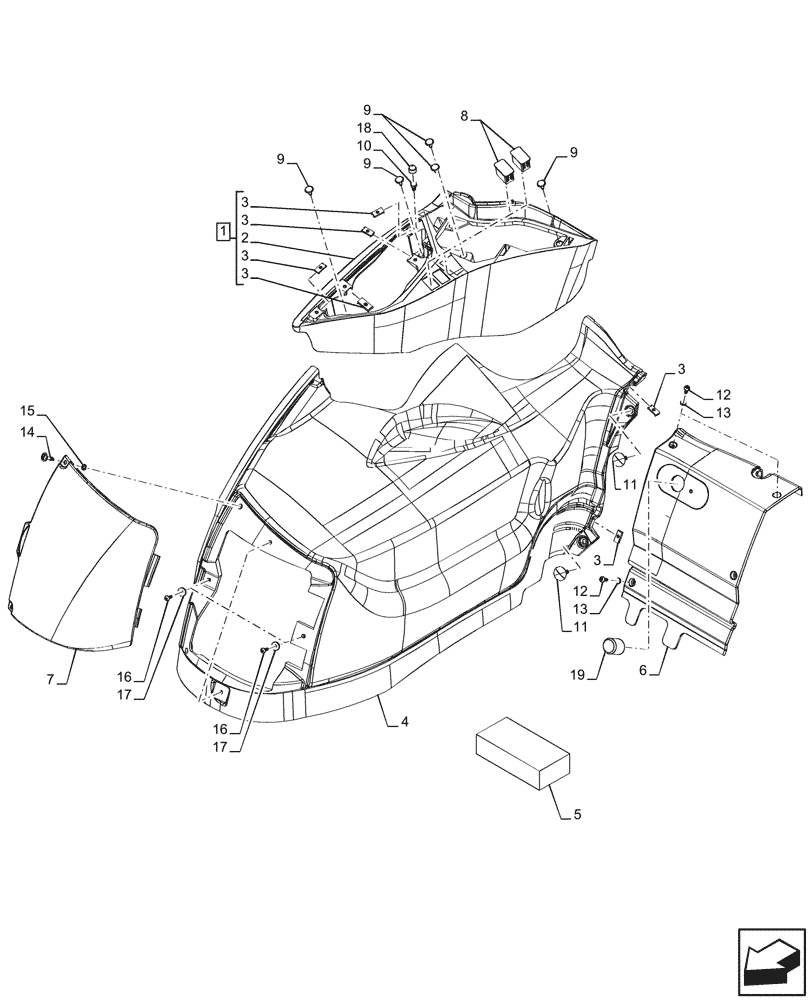

Схема запчастей Case IH MAXXUM 115 - (90.160.BL[04]) - VAR - 392204, 743764, 743766, 758414, 758416, 758581 - CAB INTERIOR TRIM, ELECTRONIC CONTROLS, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
17
3
13
8
9
9
7
17
3
1
10
13
12
5
11
6
14
4
9
18
2
11
3
3
3
19
12
16
3
9
16
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47767713

COVER

Cover, Wheat Color, ASSY, Incl 2, 3 (Qty 4)

1шт.

2

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

3

87567755

SPRING NUT,M5

6шт.

4

84242733

PANEL

1шт.

5

81870060

FOAM INSULATION

4шт.

6

84213367

PANEL

1шт.

7

87734672

COVER

1шт.

8

82022763

PLUG

2шт.

Less Rocker Switch

1шт.

9

10558728

SCREW,Flat Hd W/Collar, M6 x 22mm, Cl 8.8

5шт.

10

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

11

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

2шт.

12

84187813

SCREW,Tap, Torx Pan Hd, M5.5 x 1.8 x 16mm

4шт.

13

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

14

84193550

FASTENER,Black

2шт.

15

87734456

RETAINER,13mm OD x 0.8mm Thk

2шт.

16

15647001

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 19mm

4шт.

17

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

18

87516431

CUP,for M8 Nut

1шт.

19

47998661

PLUG,35mm OD x 11.5mm L

1шт.
