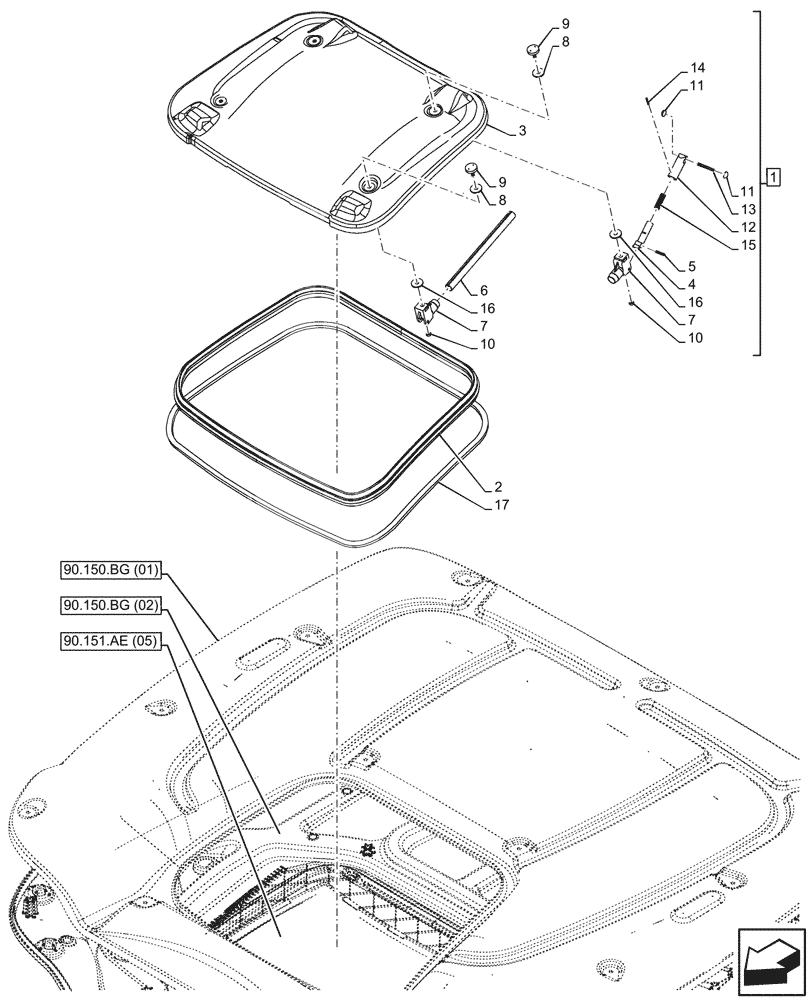

Запчасти Case IH MAXXUM 115 (90.156.AY[04A]) - VAR - 392209 - CAB GLASS, HIGH PROFILE ROOF, W/ HIGH VISIBILITY PANEL, BASILDON - BEGIN YR 14-JUNE-2016 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84318628

WINDOW,High Visibility Module

ASSY, Incl 3 - 16

1шт.

2

47619364

SEAL,30.3mm W x 19mm Thk x 2220mm L

1шт.

3

NSS

NOT SOLD SEPARAT

High Visibility Window, Incl in 1

1шт.

4

87515655

PIN

4шт.

5

87515666

HOLDER

4шт.

6

87515660

HANDLE

2шт.

7

87515664

HINGE

4шт.

8

NSS

NOT SOLD SEPARAT

Gasket, Incl in 1

4шт.

9

NSS

NOT SOLD SEPARAT

Knob, Incl in 1

4шт.

10

87515658

NUT

4шт.

11

87515656

CAP WASHER

8шт.

12

87515665

HOLDER

4шт.

13

87515657

PIN

4шт.

14

87515659

PIN

4шт.

15

87515663

SPRING

4шт.

16

NSS

NOT SOLD SEPARAT

Gasket, Incl in 1

4шт.

17

47619369

SEAL,14.2mm W x 8mm Thk x 2456.5mm L

1шт.
