Запчасти Case IH MAXXUM 115 (90.156.AE[02]) - VAR - 392195, 392204, 743764, 743766, 758413, 758414, 758415, 758416, 758581 - CAB, WINDOW, REAR, GAS STRUT (90) - PLATFORM, CAB, BODYWORK AND DECALS

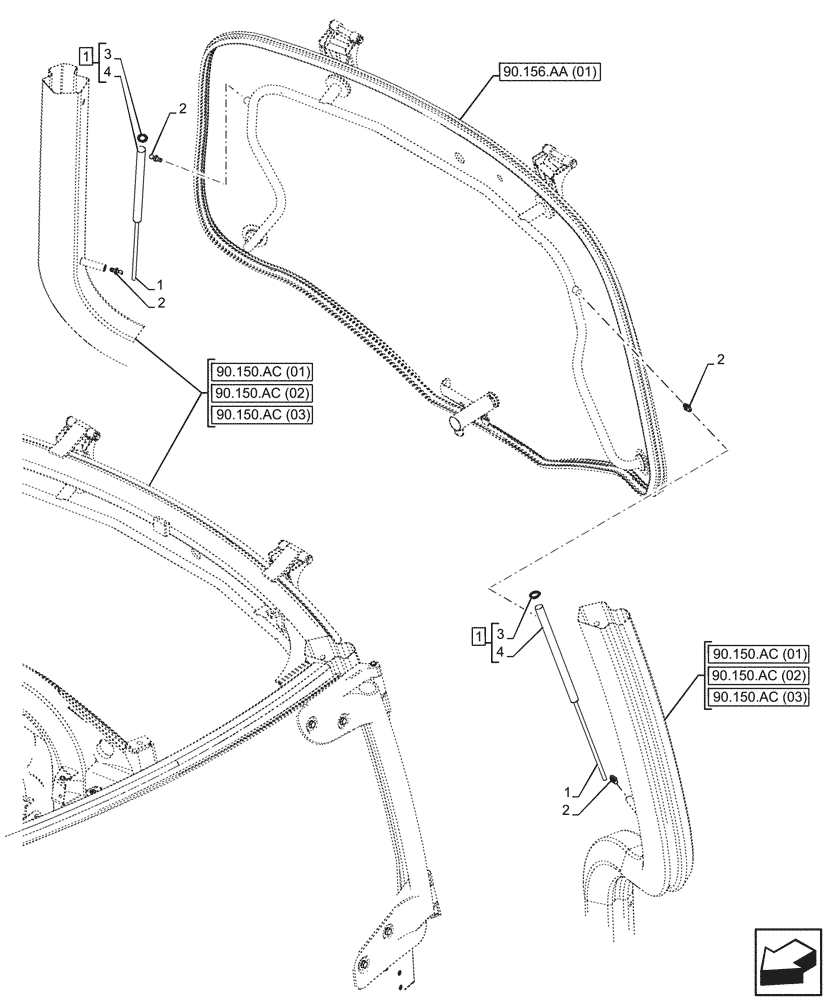

Схема запчастей Case IH MAXXUM 115 - (90.156.AE[02]) - VAR - 392195, 392204, 743764, 743766, 758413, 758414, 758415, 758416, 758581 - CAB, WINDOW, REAR, GAS STRUT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.156.aa (01)
2
1
2
1
2
4
1
2
1
4
3
3
90.150.ac (03)
90.150.ac (03)
90.150.ac (01)
90.150.ac (01)
90.150.ac (02)
90.150.ac (02)

Артикул

Название

Примечание

Количество

1

82022486

GAS STRUT,486mm Extended, 286mm Compressed

ASSY, Incl 3 (Qty 1), 4 (Qty 1)

2шт.

2

83952214

BALL STUD,M8 x 29.5mm OAL

4шт.

3

82019395

SEAL

2шт.

4

NSS

NOT SOLD SEPARAT

Gas Strut, Incl in 1

2шт.

Выбрано товаров: 4
