Запчасти Case IH MAXXUM 115 (90.151.AT[01]) - VAR - 758154, 758621 - MONITOR, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

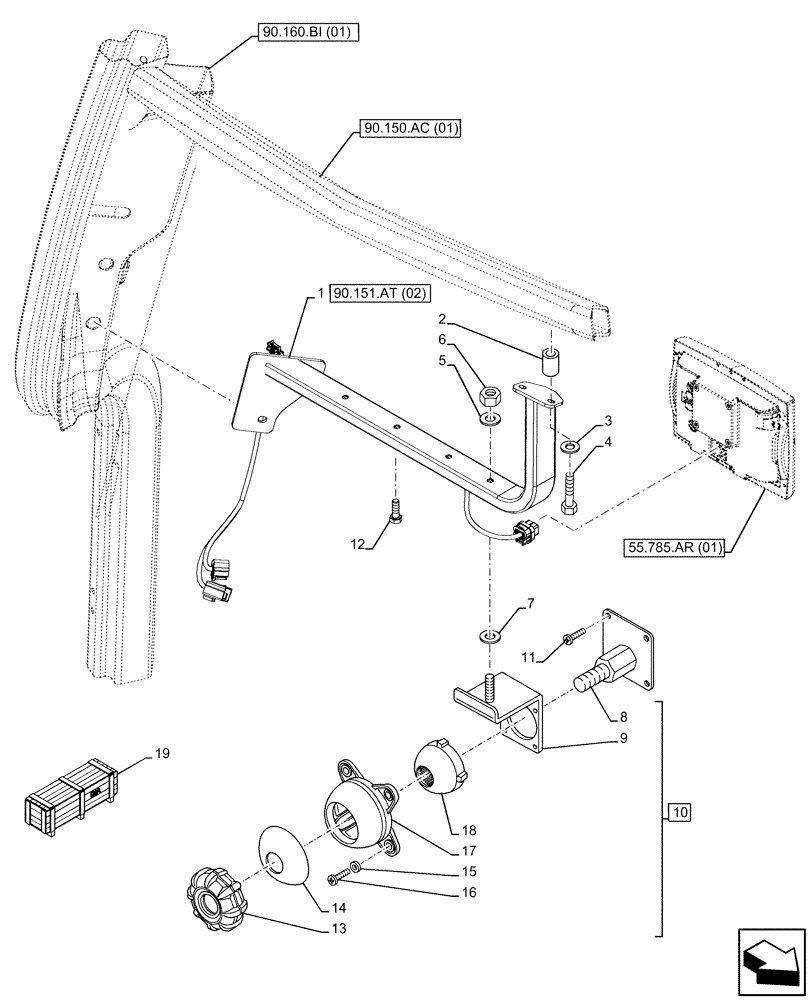

Схема запчастей Case IH MAXXUM 115 - (90.151.AT[01]) - VAR - 758154, 758621 - MONITOR, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
55.785.ar (01)
7
8
15
3
18
5
1
19
16
14
11
2
10
13
4
12
17
9
6
90.150.ac (01)
90.160.bi (01)
90.151.at (02)

Артикул

Название

Примечание

Количество

1

84361958

HOLDER

ASSY

1шт.

2

87681589

SPACER,8mm ID x 11mm OD x 16mm L

2шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

4

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

5

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

6

11701711

NUT,Hex, M10, Cl 8, ZND

1шт.

7

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

8

87565605

SUPPORT

1шт.

9

87614600

BRACKET

1шт.

10

87614599

SUPPORT

ASSY, Incl 8, 9 13 - 18

1шт.

11

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

4шт.

12

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

13

87316701

KNOB

1шт.

14

87316706

CUP,23mm ID x 68.6mm OD, Black

1шт.

15

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

16

86585711

SCREW,Phillips Drive, Pan HD, M6 x 10mm, Cl 4.8

4шт.

17

87614602

BASE

1шт.

18

87614603

CUP,Black

1шт.

19

719343014

DIA KIT, TRACTOR

Bracket and harness for Installation Display, Incl 1 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

19

710686024

DIA KIT, TRACTOR

Bracket for Mounting Equipment Monitor, Incl 2 - 4, 6, 8 - 10, 13 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
