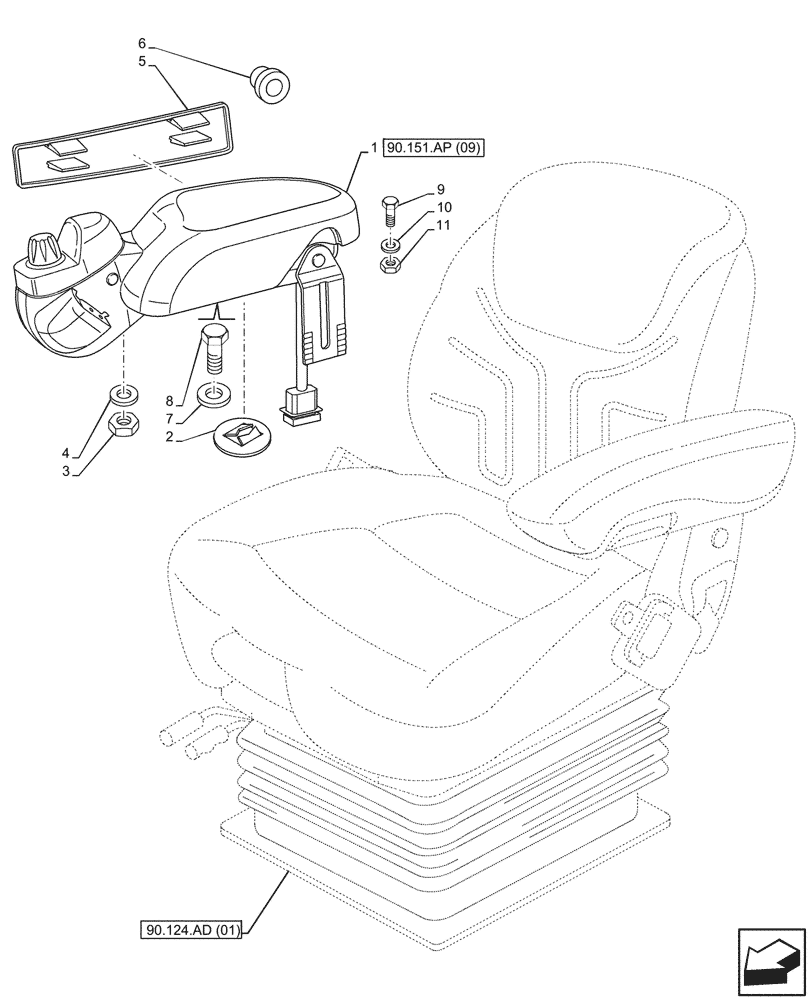

Запчасти Case IH MAXXUM 115 (90.151.AP[08]) - VAR - 390021 - ARMREST, EDC, W/ HEADLAND TURNING SYSTEM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87398440

ARMREST ASSY.

Less Slip, with HTS

1шт.

2

47057509

FASTENER

2шт.

3

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

4

12628901

WASHER,8.15mm ID x 25mm OD x 4mm Thk

8.15 x 25 x 4

1шт.

5

87385341

BLANK-OFF PLUG,3.5mm Thk, Black

1шт.

6

81862738

PLUG,M38 x 28 x 5mm

3шт.

7

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

8

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

9

83976489

SCREW,Pan, M5 x 20mm, Cl 4.8

2шт.

10

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

11

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

2шт.
