(90.151.AP[02]) - VAR - 392205 - GARU ARMREST, HOUSING, HINGE

Запчасти Case IH MAXXUM 115 (90.151.AP[02]) - VAR - 392205 - GARU ARMREST, HOUSING, HINGE (90) - PLATFORM, CAB, BODYWORK AND DECALS

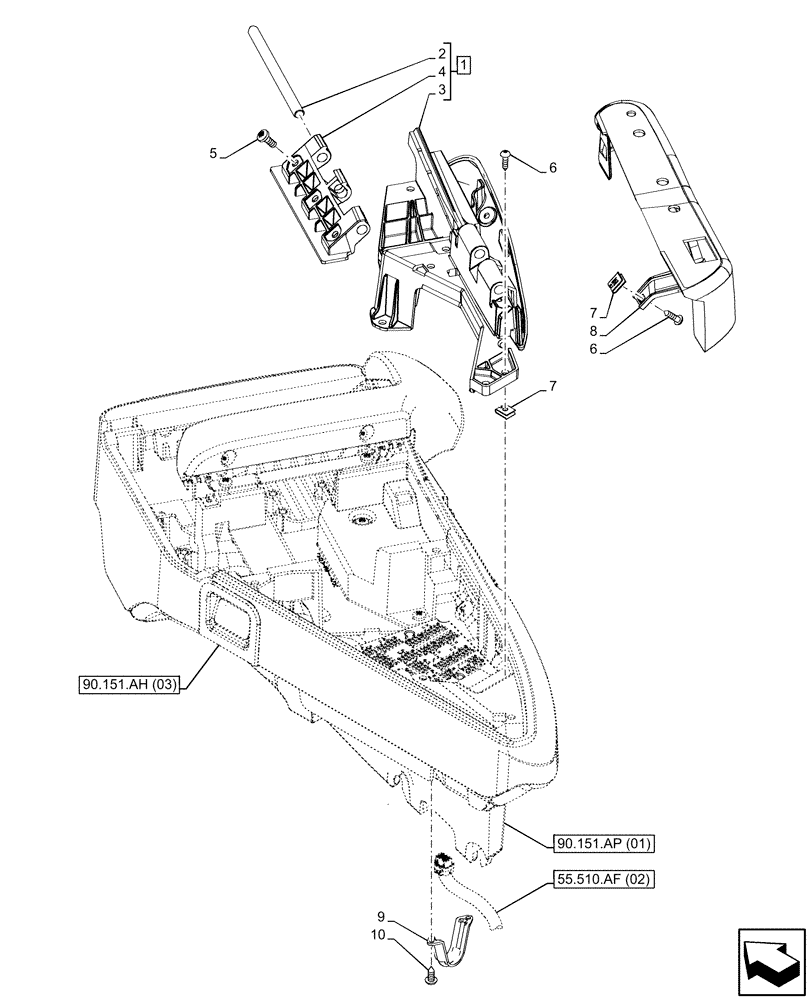

Схема запчастей Case IH MAXXUM 115 - (90.151.AP[02]) - VAR - 392205 - GARU ARMREST, HOUSING, HINGE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.ah (03)
10
2
4
9
5
1
6
8
3
7
6
7
55.510.af (02)
90.151.ap (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84204558

HINGE

ASSY, Incl 2 - 4

1шт.

2

84147684

PIN,10mm OD x 144mm L

1шт.

3

84153062

HINGE

1шт.

4

87487262

HINGE

1шт.

5

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

3шт.

6

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

7шт.

7

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

7шт.

8

84216544

HOUSING

1шт.

9

87579853

RETAINER,14.9mm W x 56.7mm L

1шт.

10

15902607

SELF-TAP SCREW,Cross Pan Hd, M3.50 x 1.3 x 9.50mm

2шт.
