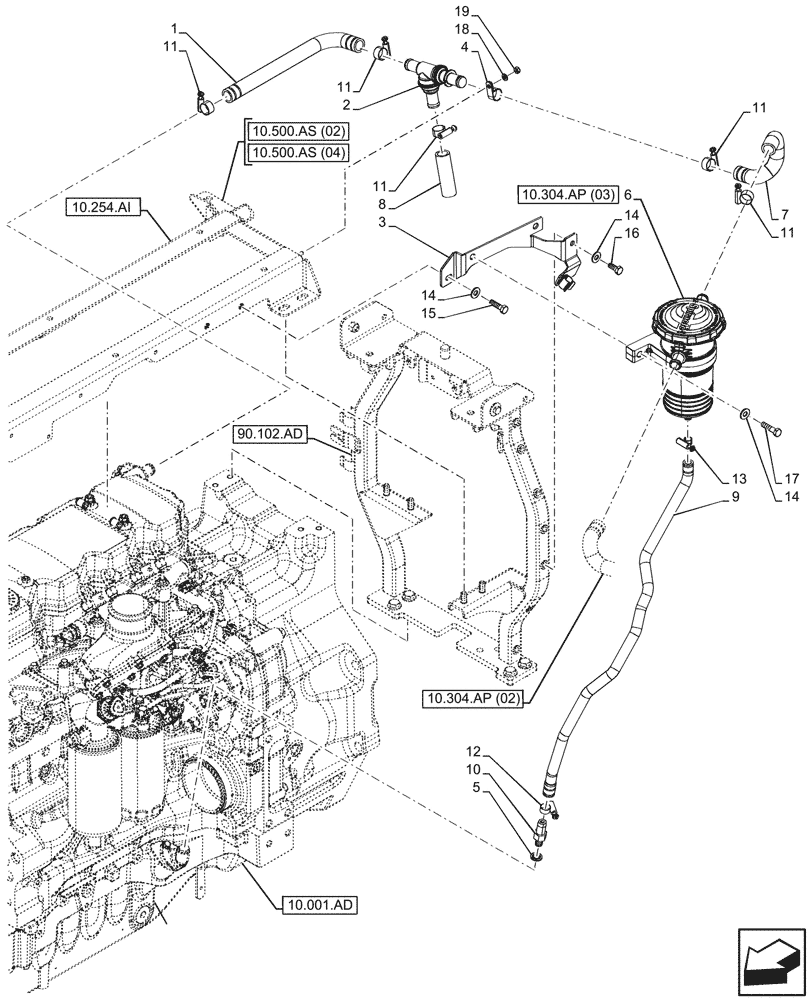

Запчасти Case IH MAXXUM 115 (10.304.AP[01]) - VAR - 392194, 392210, 758400, 758588 - BLOW-OFF SYSTEM (10) - ENGINE

1

47465613

HOSE

Blow by 4 Cyl

1шт.

2

47446330

VALVE

1шт.

3

47589172

BRACKET

1шт.

4

87552802

CLAMP,19mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

5

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

6

47474769

FILTER

ASSY

1шт.

7

47450579

HOSE

1шт.

8

47450582

HOSE

Drain

1шт.

9

47613974

HOSE

Blow by 4 Cyl

1шт.

10

84326458

CHECK VALVE

1шт.

11

82039344

HOSE CLAMP,20mm - 32mm

5шт.

12

82039343

HOSE CLAMP,16mm - 27mm

1шт.

13

82039341

CLAMP,12mm - 22mm

1шт.

14

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

15

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

16

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

17

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

18

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

19

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.
