(90.150.BG[14]) - VAR - 744985 - CAB ROOF, LOW PROFILE ROOF, BRACKET, NA

Запчасти Case IH MAXXUM 115 (90.150.BG[14]) - VAR - 744985 - CAB ROOF, LOW PROFILE ROOF, BRACKET, NA (90) - PLATFORM, CAB, BODYWORK AND DECALS

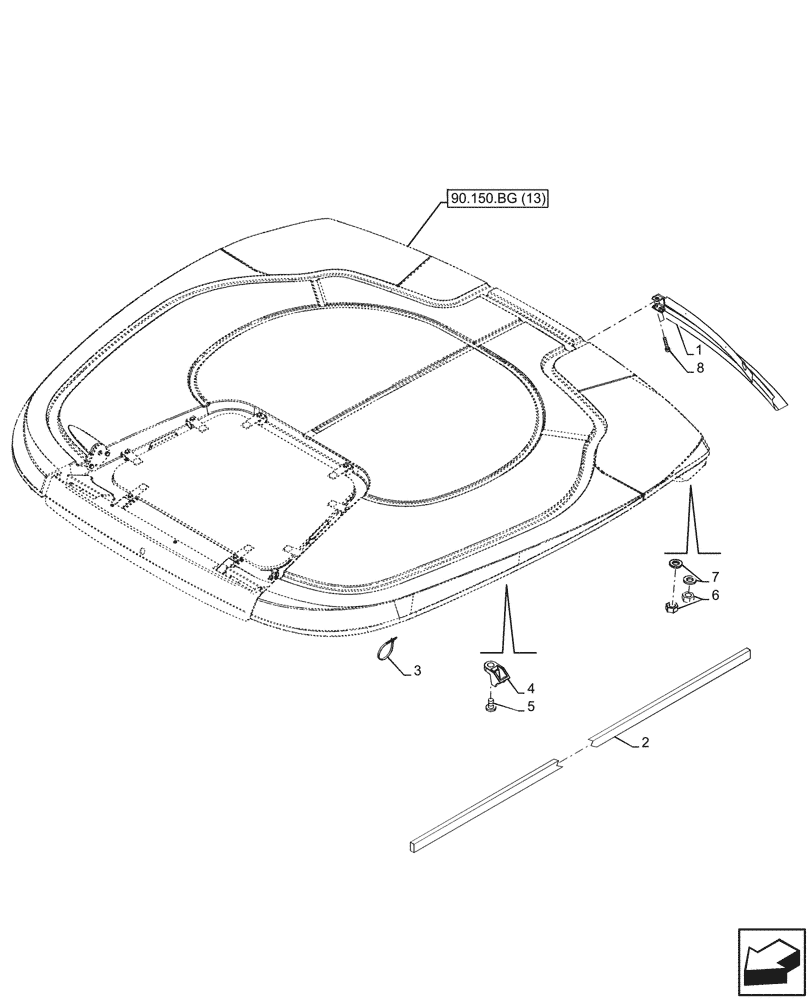

Схема запчастей Case IH MAXXUM 115 - (90.150.BG[14]) - VAR - 744985 - CAB ROOF, LOW PROFILE ROOF, BRACKET, NA (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.bg (13)
6
3
5
8
4
7
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84470635

BRACKET

1шт.

2

47467341

SEAL,30mm W x 15mm Thk x 5000mm L

1шт.

3

82028498

CABLE TIE

15шт.

4

81864285

CLIP,M6, Black

15шт.

5

15903804

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 13mm

15шт.

6

9706755

NUT,M6, Cl 8

2шт.

7

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

8

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

2шт.
