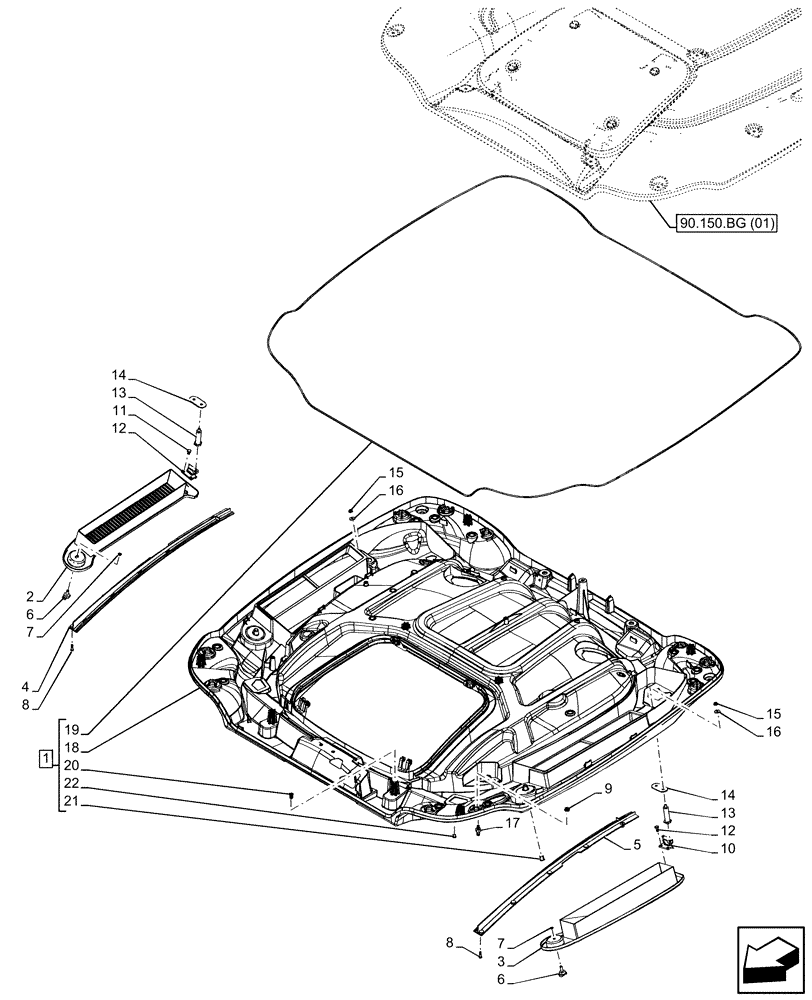

Запчасти Case IH MAXXUM 115 (90.150.BG[02]) - VAR - 392209 - CAB ROOF, HIGH PROFILE ROOF, W/ HIGH VISIBILITY PANEL, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47613528

ROOF FRAME

Carrier, ASSY, Incl 18 - 22

1шт.

2

87725999

SUPPORT

RH

1шт.

3

82033661

SUPPORT

LH

1шт.

4

87640268

GUIDE

RH

1шт.

5

87640267

GUIDE

LH

1шт.

6

84516592

KNOB

Air Filter

2шт.

7

87524305

RETAINER,7.3mm ID x 12.5mm OD x 0.5mm Thk

2шт.

8

82034113

SELF-TAP SCREW,Torx, Round HD, M5 x 3 x 25mm

10шт.

9

13046211

NUT,Flange Hex, M8

10шт.

10

82033690

HINGE

LH

1шт.

11

82033679

HINGE

RH

1шт.

12

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

13

47619360

SPACER,M8 x 19mm OD x 63mm L

Filter

4шт.

14

47619371

SEAL,77.5mm L x 37.0mm W x 3.0mm Thk

Filter

2шт.

15

14084814

FLANGE NUT,M8 x 1.25, Flg

4шт.

16

12642001

WASHER,8.15mm ID x 25mm OD x 1.5mm Thk

4шт.

17

47683611

STUD,M8, M10, Cl 8

10шт.

18

NSS

NOT SOLD SEPARAT

Roof Frame Carrier, Incl in 1

1шт.

19

47793093

SEAL,5mm OD

1шт.

20

87652569

INSERT,M6 x 14 mm L

M6

21шт.

21

47688819

INSERT,M8 x 15mm L

M8

10шт.

22

47613630

INSERT,M5 x 10 mm L

M5

11шт.
