(90.150.BG[01]) - VAR - 392209 - CAB ROOF, HIGH PROFILE ROOF, W/ HIGH VISIBILITY PANEL

Запчасти Case IH MAXXUM 115 (90.150.BG[01]) - VAR - 392209 - CAB ROOF, HIGH PROFILE ROOF, W/ HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

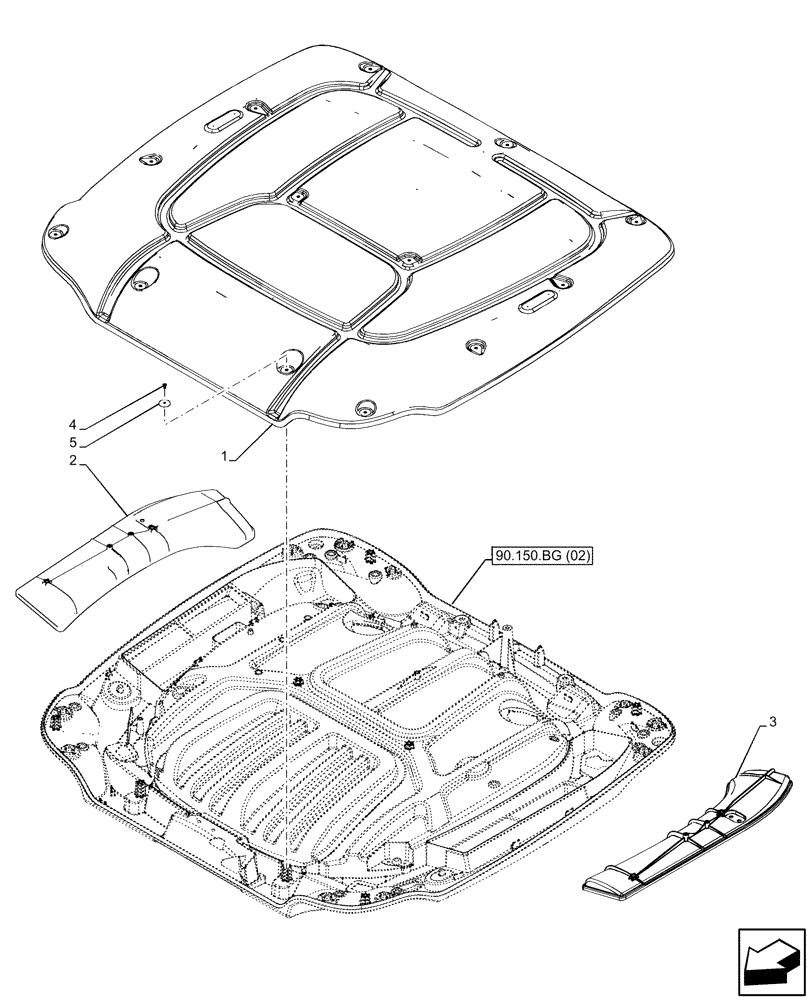

Схема запчастей Case IH MAXXUM 115 - (90.150.BG[01]) - VAR - 392209 - CAB ROOF, HIGH PROFILE ROOF, W/ HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.bg (02)
1
3
5
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47613457

ROOF

1шт.

2

47619354

COVER

RH

1шт.

3

47619357

COVER

LH

1шт.

4

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

13шт.

5

82037891

SEALING WASHER,6mm ID x 19mmOD x 1.5mm Thk

13шт.
