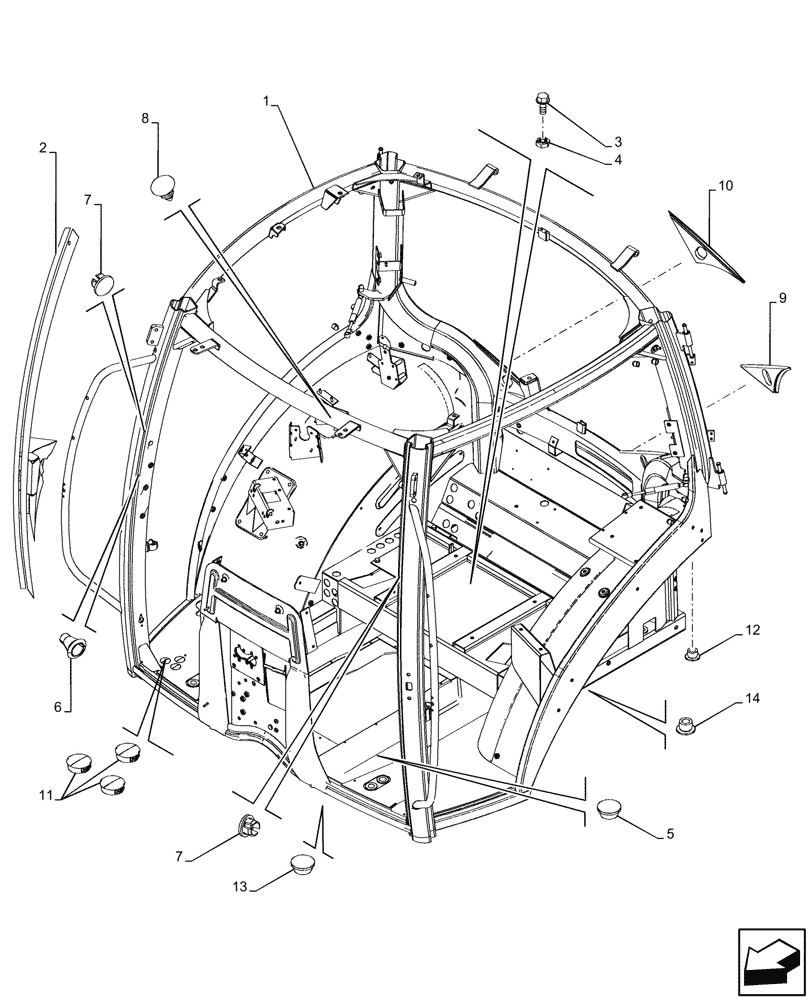

Запчасти Case IH MAXXUM 115 (90.150.AC[04]) - VAR - 758479, 758481 - CAB FRAME, GARU ARMREST (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47723387

CAB

1шт.

2

84195950

SUPPORT

1шт.

3

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

4

14098810

NUT,Weld, M8

2шт.

5

84234592

PLUG,M20.7 x 10.5mm

2шт.

6

87341141

PLUG

3шт.

7

81865132

PLUG,11.20mm

2шт.

8

87716701

PLUG,Blanking, Snap, 6.40mm Dia

1шт.

9

82036800

PLUG

1шт.

10

82036801

PLUG

1шт.

11

82031549

BLANK-OFF PLUG,35mm OD, Black

3шт.

12

82003283

PLUG,10.5mm OD

4шт.

13

82032838

PLUG,20.7mm ID x 25mm OD x 10.5mm Thk

2шт.

14

82036858

COVER

4шт.
