Запчасти Case IH MAXXUM 115 (90.124.AQ[01]) - VAR - 391285 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, LUMBAR, ADJUSTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

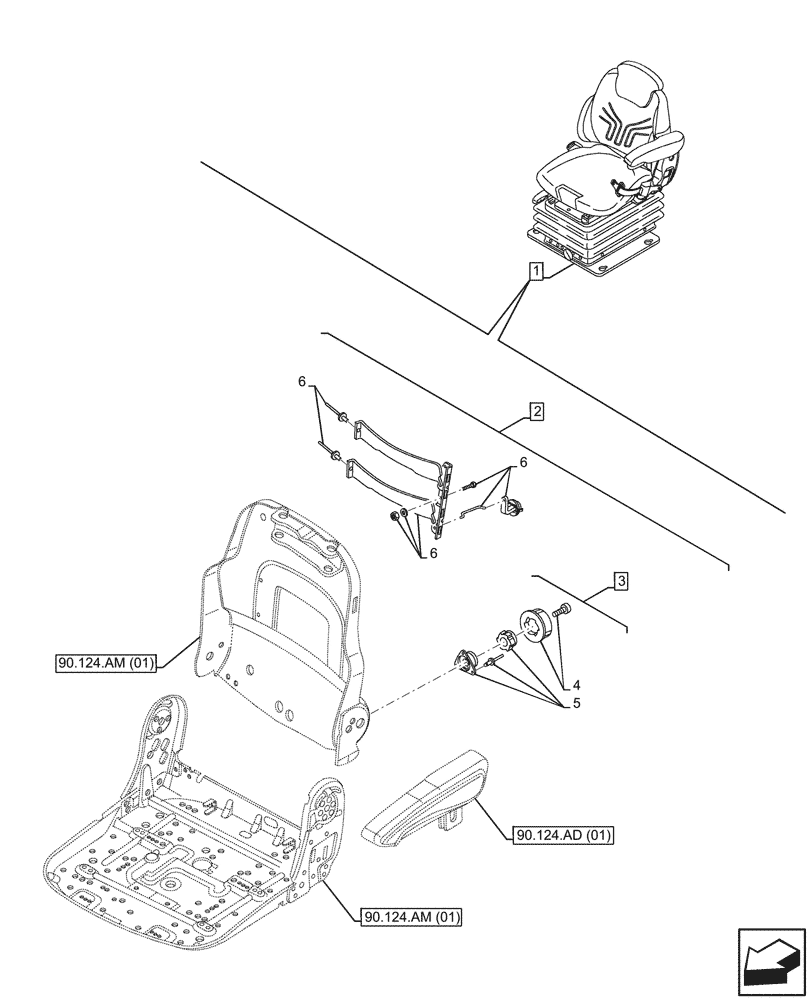

Схема запчастей Case IH MAXXUM 115 - (90.124.AQ[01]) - VAR - 391285 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, LUMBAR, ADJUSTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.am (01)
4
5
6
3
6
2
1
6
90.124.ad (01)
90.124.am (01)

Артикул

Название

Примечание

Количество

1

87486990

SEAT

ASSY, Deluxe Seat with Low Frequency Suspension, Belt and Up/Down Headrest, Incl 2 - 6

1шт.

See also Driver Seat Components in Figure 55.512.CQ (01), 90.124.AD (01), 90.124.AH (01), 90.124.AK (01), 90.124.AL (01), 90.124.AM (01), 90.124.AM (02), 90.124.AN (01), 90.151.AD (01)

1шт.

2

345767A1

SUPPORT

ASSY, Incl 3 - 6

1шт.

3

84191199

ACTUATOR

ASSY, Incl 4, 5

1шт.

4

82034964

HANDLE

1шт.

5

NSS

NOT SOLD SEPARAT

Actuator Lumbar Support, Incl in 3

1шт.

6

NSS

NOT SOLD SEPARAT

Lumbar Support, Incl in 2

1шт.

Выбрано товаров: 7
