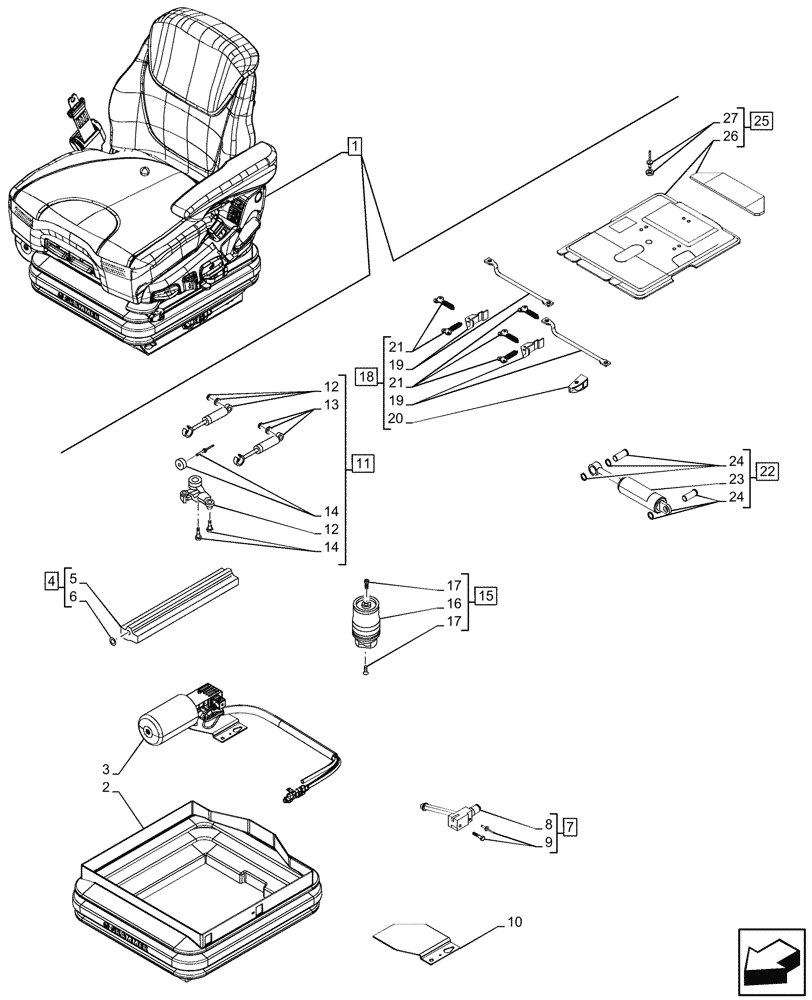

Запчасти Case IH MAXXUM 115 (90.124.AN[05]) - VAR - 758363 - DRIVER SEAT, W/ SEMI-ACTIVE SUSPENSION, W/ HEATED CUSHIONS, ACTIVE LEATHER COMFORT PACK, SUSPENSION COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47544026

DRIVER SEAT

ASSY, Pasubio Verona Scarlet, Active Leather Comfort Pack EHR, Incl 2 - 27

1шт.

See also Driver Seat Components in Figure 55.512.CQ (07), 55.512.CS (14), 90.124.AH (07), 90.124.AM (11), 90.151.AD (07)

1шт.

2

47897064

BELLOWS

1шт.

3

47897058

MODULE

1шт.

4

47897062

CONTROLLER

ASSY, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Controller, Incl in 4

1шт.

6

47897060

REPAIR KIT

1шт.

7

47897065

MANIFOLD

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Air Manifold, Incl in 7

1шт.

9

47897061

REPAIR KIT

1шт.

10

47897030

PLATE

1шт.

11

84302172

SHOCK ABSORBER

ASSY, Incl 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

Shock Absorber, Incl in 11

1шт.

13

84190985

SHOCK ABSORBER

1шт.

14

84191002

REPAIR KIT

1шт.

15

84190972

SHOCK ABSORBER

ASSY, Incl 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Shock Absorber, Incl in 15

1шт.

17

84191012

REPAIR KIT

1шт.

18

84302173

KIT

ASSY, Incl 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

Adjustment, Incl in 18

1шт.

20

1472163

HANDLE

1шт.

21

84302182

REPAIR KIT

1шт.

22

47897063

SHOCK ABSORBER

ASSY, Incl 23, 24

1шт.

23

NSS

NOT SOLD SEPARAT

Shock Absorber, Incl in 22

1шт.

24

84253103

REPAIR KIT

1шт.

25

84302165

COVER

ASSY, Incl 26, 27

1шт.

26

NSS

NOT SOLD SEPARAT

Cover, Incl in 25

1шт.

27

84302180

REPAIR KIT

1шт.
