Запчасти Case IH MAXXUM 115 (90.124.AM[10]) - VAR - 758362 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, BASE PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

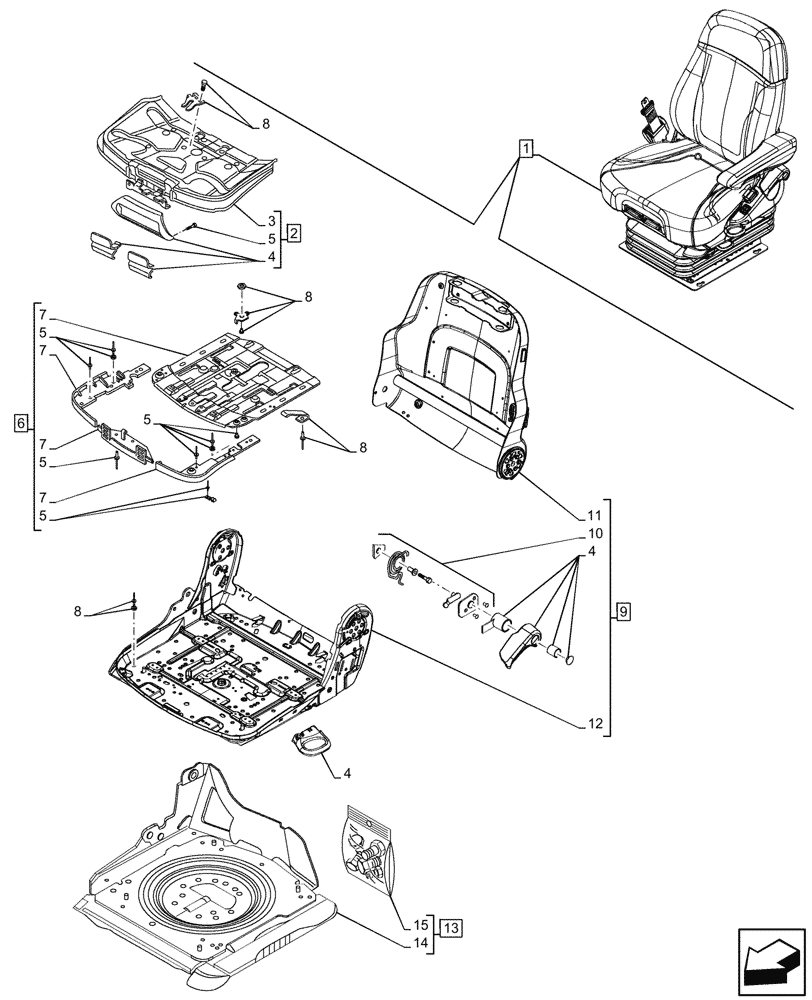

Схема запчастей Case IH MAXXUM 115 - (90.124.AM[10]) - VAR - 758362 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, BASE PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
1
6
5
12
9
7
2
7
14
15
8
8
10
5
5
7
8
8
5
5
7
4
4
11
3
13

Артикул

Название

Примечание

Количество

1

47544015

DRIVER SEAT

ASSY, Fabric Verona Grey, De Luxe Comfort Pack EHR, Incl 2 - 15

1шт.

See also Driver Seat Components in Figure 55.512.CQ (06), 55.512.CS (13), 90.124.AH (06), 90.124.AN (06), 90.124.AO (02), 90.151.AD (06)

1шт.

2

47897080

SERVICE KIT

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Support, Incl in 2

1шт.

4

47891302

ACTUATOR

1шт.

5

84191202

SET OF PARTS

1шт.

6

84302186

SEAT

ASSY, Incl 5, 7

1шт.

7

NSS

NOT SOLD SEPARAT

Seat, Incl in 6

1шт.

8

47891407

SERVICE KIT

1шт.

9

47891522

SERVICE KIT

ASSY, Incl 4, 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

Backrest Adjustment, Incl in 9

1шт.

11

NSS

NOT SOLD SEPARAT

Backrest, Incl in 9

1шт.

12

NSS

NOT SOLD SEPARAT

Seat, Incl in 9

1шт.

13

47891495

SERVICE KIT

ASSY, Incl 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Support, Incl in 13

1шт.

15

47897033

SERVICE KIT

1шт.

Выбрано товаров: 16
