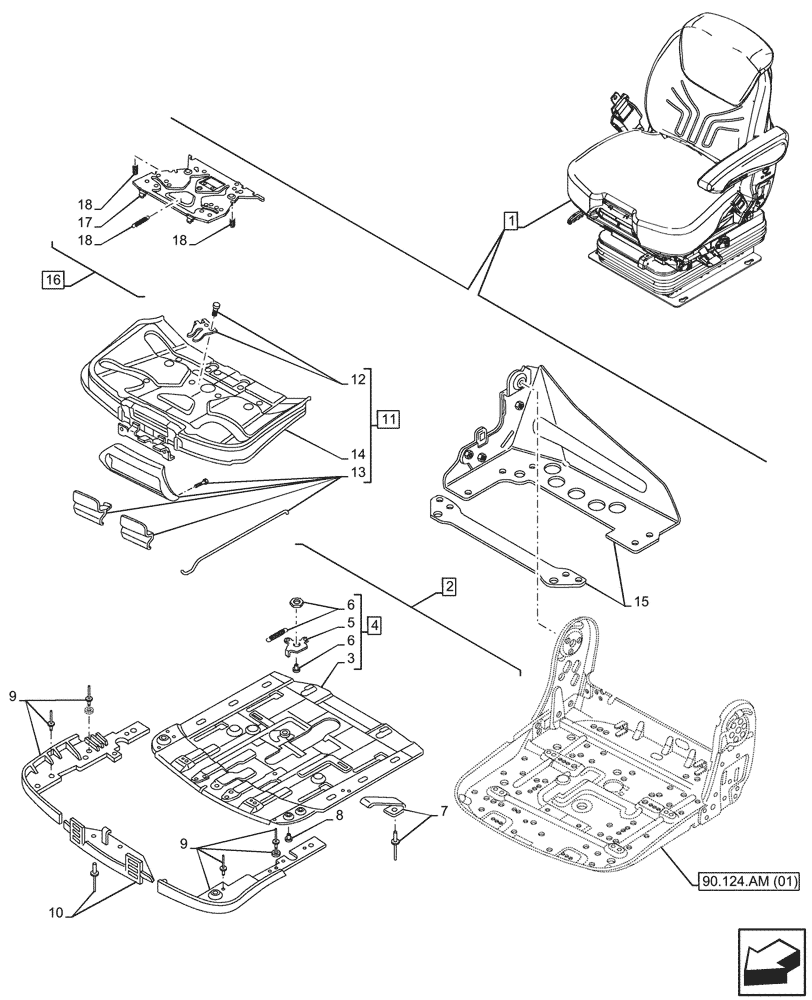

Запчасти Case IH MAXXUM 115 (90.124.AM[02]) - VAR - 391285 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87486990

SEAT

ASSY, Deluxe Seat with Low Frequency Suspension, Belt and Up/Down Headrest, Incl 2 - 18

1шт.

See also Driver Seat Components in Figure 55.512.CQ (01), 90.124.AD (01), 90.124.AH (01), 90.124.AK (01), 90.124.AL (01), 90.124.AM (01), 90.124.AN (01), 90.124.AQ (01), 90.151.AD (01)

1шт.

2

84191167

ADJUSTER

ASSY, Incl 3 - 10

1шт.

3

NSS

NOT SOLD SEPARAT

Depth Adjustment, Incl in 2

1шт.

4

345775A1

LEVER

ASSY, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Lever, Incl in 4

1шт.

6

84191203

CONTROL LEVER

1шт.

7

84191175

SEAT PLATE

1шт.

8

84191202

SET OF PARTS

1шт.

9

1-34-751-727

COVER

1шт.

10

1-34-751-728

COVER

1шт.

11

84191153

ADJUSTER

ASSY, Incl 12 - 14

1шт.

12

1-34-751-739

FIXING PLATE

1шт.

13

84191160

TRIGGER

1шт.

14

NSS

NOT SOLD SEPARAT

Seat Angle Adjustment, Incl in 11

1шт.

15

84191195

SUPPORT

1шт.

16

84191141

PLATE

ASSY, Incl 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

Seat, Service Part, Incl in 16

1шт.

18

84191201

SET OF PARTS

1шт.

Include also Small Parts in Figure 55.512.CQ (01)

1шт.
