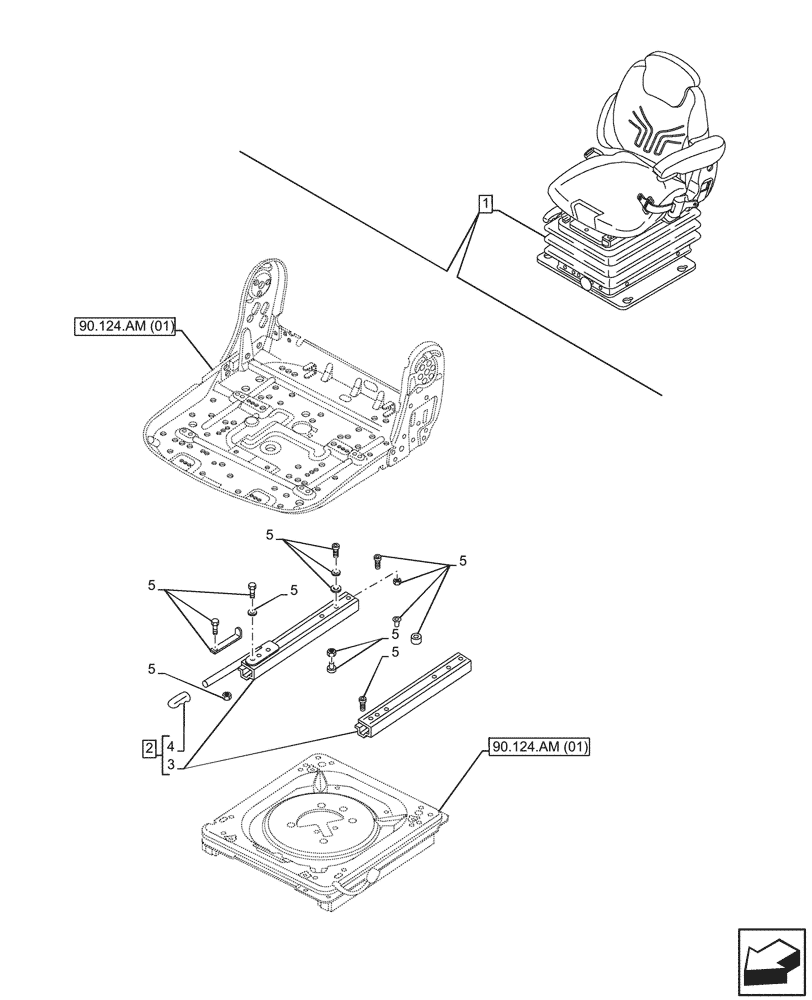

Запчасти Case IH MAXXUM 115 (90.124.AL[01]) - VAR - 391285 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87486990

SEAT

ASSY, Deluxe Seat with Low Frequency Suspension, Belt and Up/Down Headrest, Incl 2 - 5

1шт.

See also Driver Seat Components in Figure 55.512.CQ (01), 90.124.AD (01), 90.124.AH (01), 90.124.AK (01), 90.124.AM (01), 90.124.AM (02), 90.124.AN (01), 90.124.AQ (01), 90.151.AD (01)

1шт.

2

84191191

REPAIR KIT

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Seat Slide Guide, Incl in 2

1шт.

4

9971715

HANDLE

1шт.

5

84191194

MOUNTING PARTS

1шт.

Include also Small Parts in Figure 90.124.AM (01), 90.151.AD (01)

1шт.
