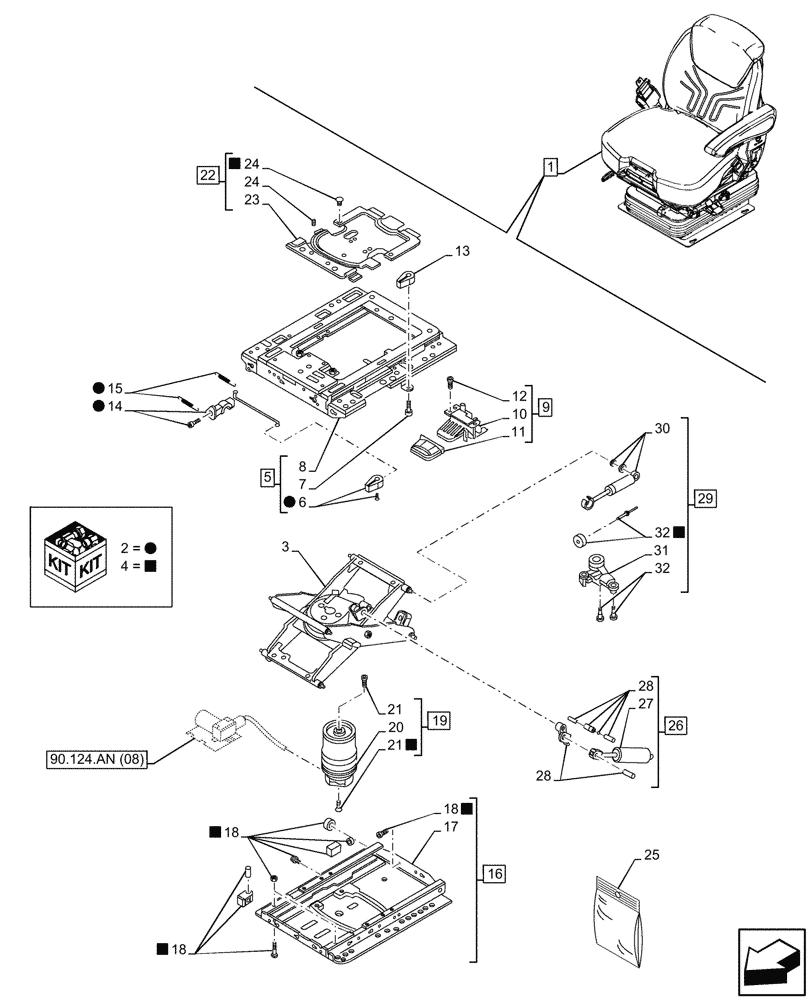

Запчасти Case IH MAXXUM 115 (90.124.AK[05]) - VAR - 758670 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, W/ ELECTROHYDRAULIC REMOTES, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84171102

SEAT

ASSY, Deluxe Seat with Low Frequency Suspension with Heated Cushions & Belt Mech Remotes, Incl 2 - 32

1шт.

See also Driver Seat Components in Figure 55.512.CQ (08), 90.124.AD (05), 90.124.AH (08), 90.124.AL (05), 90.124.AM (12), 90.124.AM (13), 90.124.AN (08), 90.124.AQ (05), 90.151.AD (08)

1шт.

2

84190989

ADJUSTER

KIT, Incl 6, 14, 15

1шт.

3

NSS

NOT SOLD SEPARAT

Suspension Seat, Incl in 1

1шт.

4

84190975

REPAIR KIT

Incl 18, 21, 24, 32

1шт.

Include also Small Parts in Figure 90.124.AN (08)

1шт.

5

84190966

PLATE

ASSY, Incl 6 - 8

1шт.

6

1472163

HANDLE

1шт.

7

84191010

REPAIR KIT

1шт.

8

NSS

NOT SOLD SEPARAT

Frame, Incl in 5

1шт.

9

345107A1

LEVER

ASSY, Incl 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

Lever, Control Height, Incl in 9

1шт.

11

84191000

HANDLE

1шт.

12

84191017

REPAIR KIT

1шт.

13

82035123

HANDLE

1шт.

14

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

1шт.

15

84191015

REPAIR KIT

1шт.

16

84190976

PLATE

ASSY, Incl 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

Suspension, Lower, Incl in 16

1шт.

18

84191014

REPAIR KIT

1шт.

19

84190972

SHOCK ABSORBER

ASSY, Incl 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

Air Spring, Incl in 19

1шт.

21

84191012

REPAIR KIT

1шт.

22

84190947

COVER

ASSY, Incl 23, 24

1шт.

23

NSS

NOT SOLD SEPARAT

Cover, Incl in 22

1шт.

24

84191006

REPAIR KIT

1шт.

25

84191020

REPAIR KIT

1шт.

26

84191071

KIT

ASSY, Incl 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Seat Shock Absorber, Incl in 26

1шт.

28

84190998

SERVICE KIT

1шт.

29

84190983

SHOCK ABSORBER

ASSY, Incl 29 - 32

1шт.

30

84190985

SHOCK ABSORBER

1шт.

31

NSS

NOT SOLD SEPARAT

Seat Shock Absorber, Incl in 29

1шт.

32

84191002

REPAIR KIT

1шт.
