(90.124.AH[07]) - VAR - 758363 - DRIVER SEAT, W/ SEMI-ACTIVE SUSPENSION, W/ HEATED CUSHIONS, ACTIVE LEATHER COMFORT PACK, CUSHION

Запчасти Case IH MAXXUM 115 (90.124.AH[07]) - VAR - 758363 - DRIVER SEAT, W/ SEMI-ACTIVE SUSPENSION, W/ HEATED CUSHIONS, ACTIVE LEATHER COMFORT PACK, CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS

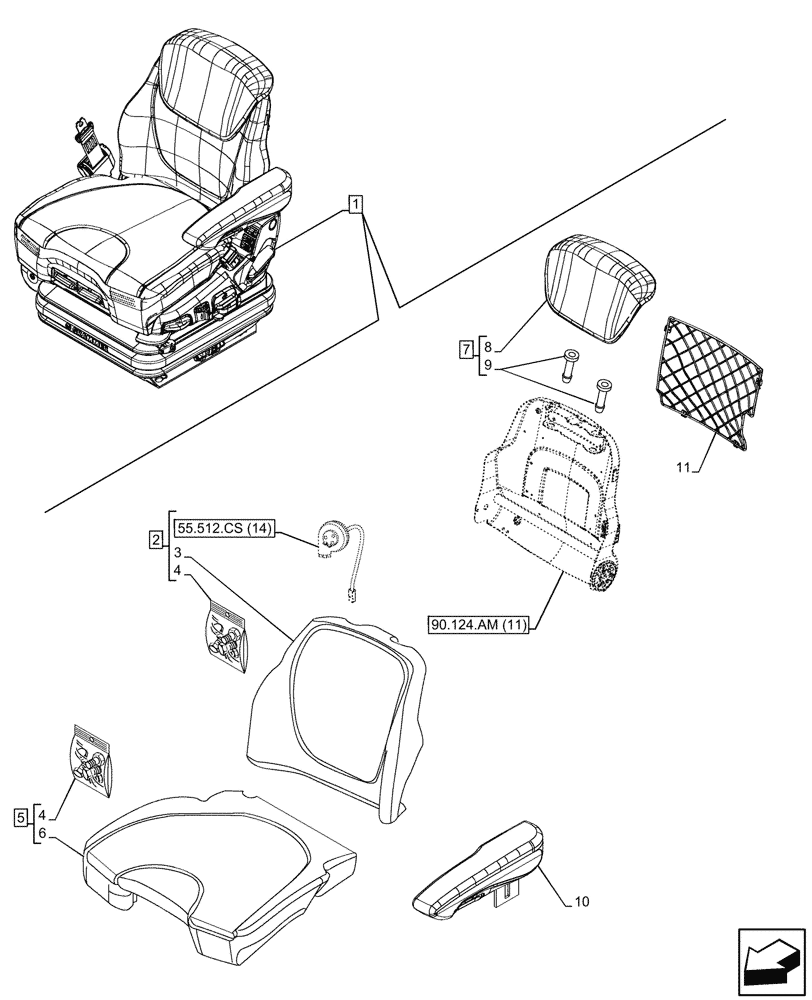

Схема запчастей Case IH MAXXUM 115 - (90.124.AH[07]) - VAR - 758363 - DRIVER SEAT, W/ SEMI-ACTIVE SUSPENSION, W/ HEATED CUSHIONS, ACTIVE LEATHER COMFORT PACK, CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS
55.512.cs (14)
8
7
3
4
4
5
10
2
11
1
9
6
90.124.am (11)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47544026

DRIVER SEAT

ASSY, Pasubio Verona Scarlet, Active Leather Comfort Pack EHR, Incl 2 - 11

1шт.

See also Driver Seat Components in Figure 55.512.CQ (07), 55.512.CS (14), 90.124.AM (11), 90.124.AN (07), 90.151.AD (07)

1шт.

2

47897049

CUSHION

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Cushion, Incl in 2

1шт.

4

84191200

SET OF PARTS

1шт.

5

47897045

CUSHION

ASSY, Incl 4, 6

1шт.

6

NSS

NOT SOLD SEPARAT

Seat Cushion, Incl in 5

1шт.

7

47897041

SEAT HEADREST

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Backrest, Incl in 7

1шт.

9

84191112

GUIDE

1шт.

10

47897038

ARMREST

1шт.

11

47576107

KIT

1шт.
