(90.124.AE[06]) - VAR - 758362 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, MOUNTING

Запчасти Case IH MAXXUM 115 (90.124.AE[06]) - VAR - 758362 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

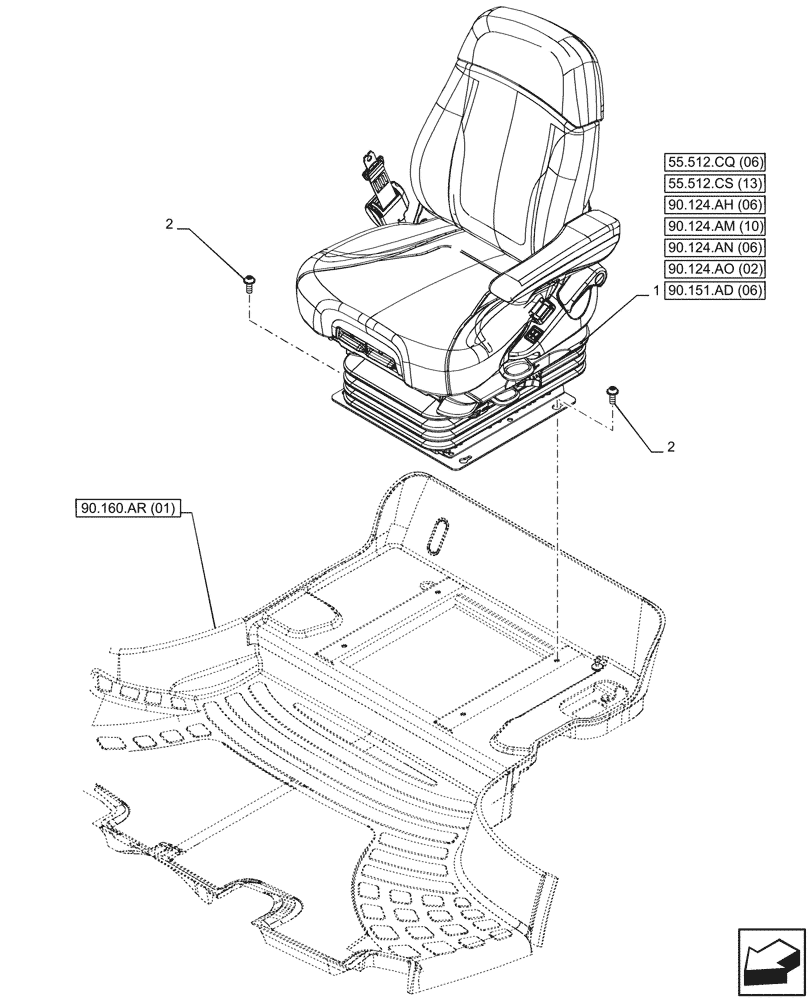

Схема запчастей Case IH MAXXUM 115 - (90.124.AE[06]) - VAR - 758362 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.ah (06)
1
2
2
90.124.an (06)
90.151.ad (06)
55.512.cs (13)
90.124.ao (02)
55.512.cq (06)
90.124.am (10)
90.160.ar (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47544015

DRIVER SEAT

Fabric Verona Grey, De Luxe Comfort Pack EHR, ASSY

1шт.

2

47901143

SCREW,Torx, Pan HD, M8 x 18mm, Cl 8.8

4шт.
