(90.124.AE[01]) - VAR - 391285 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, MOUNTING

Запчасти Case IH MAXXUM 115 (90.124.AE[01]) - VAR - 391285 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

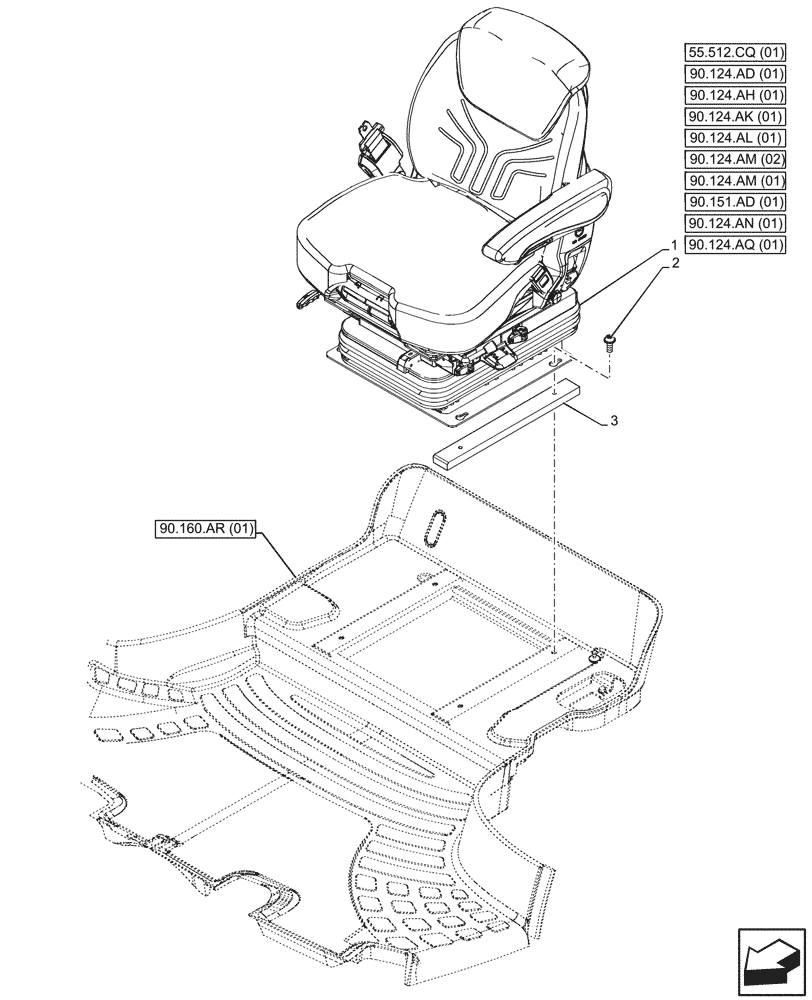

Схема запчастей Case IH MAXXUM 115 - (90.124.AE[01]) - VAR - 391285 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.an (01)
3
1
2
90.124.ad (01)
90.160.ar (01)
90.124.aq (01)
90.124.am (02)
90.124.ah (01)
90.124.al (01)
90.151.ad (01)
90.124.ak (01)
90.124.am (01)
55.512.cq (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87486990

SEAT

Deluxe Air Suspension & Belt Up/Down Headrest, ASSY

1шт.

2

47875286

SCREW,Torx, Pan HD, M8 x 38mm, Cl 8.8

4шт.

3

47772307

SPACER,422mm L x 45mm W x 20mm Thk

2шт.
