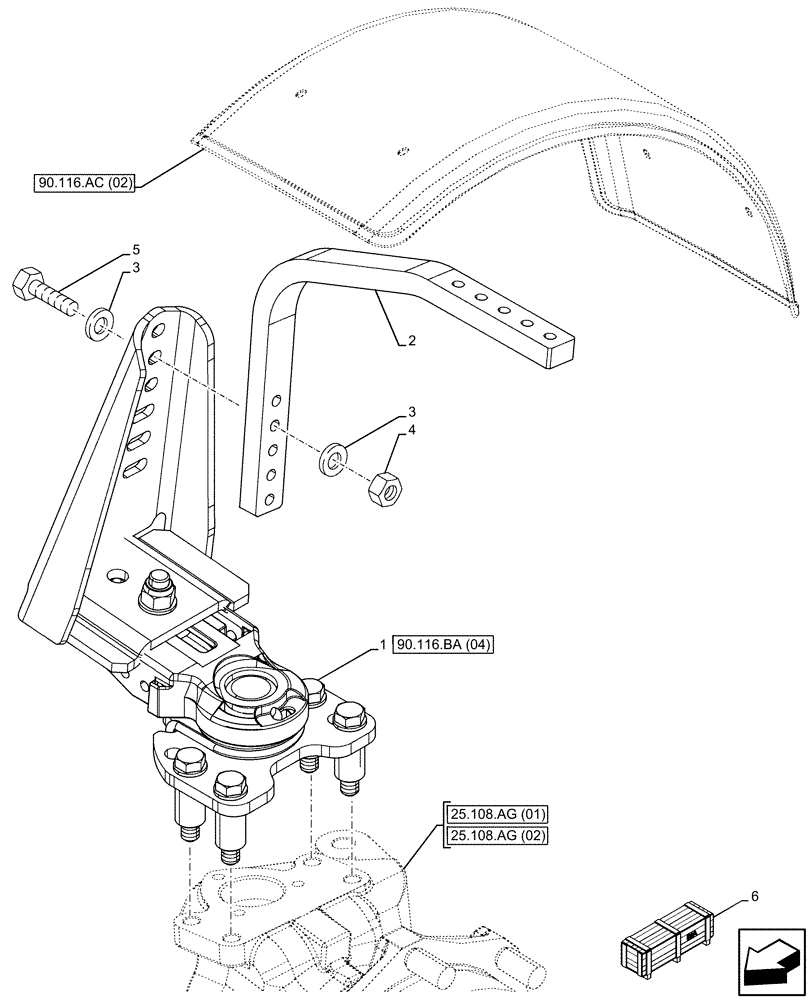

Запчасти Case IH MAXXUM 115 (90.116.BA[02]) - VAR - 758506 - FRONT FENDER, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47444870

HUB

ASSY, RH

1шт.

1

47444867

HUB

ASSY, LH

1шт.

2

82027913

SUPPORT

1шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

4шт.

4

12164911

NUT,M12 x 1.75, Cl 8

2шт.

5

15540921

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

2шт.

6

718511024

DIA KIT, TRACTOR

Dynamic Front Fenders for Standard Axle (480mm), Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
