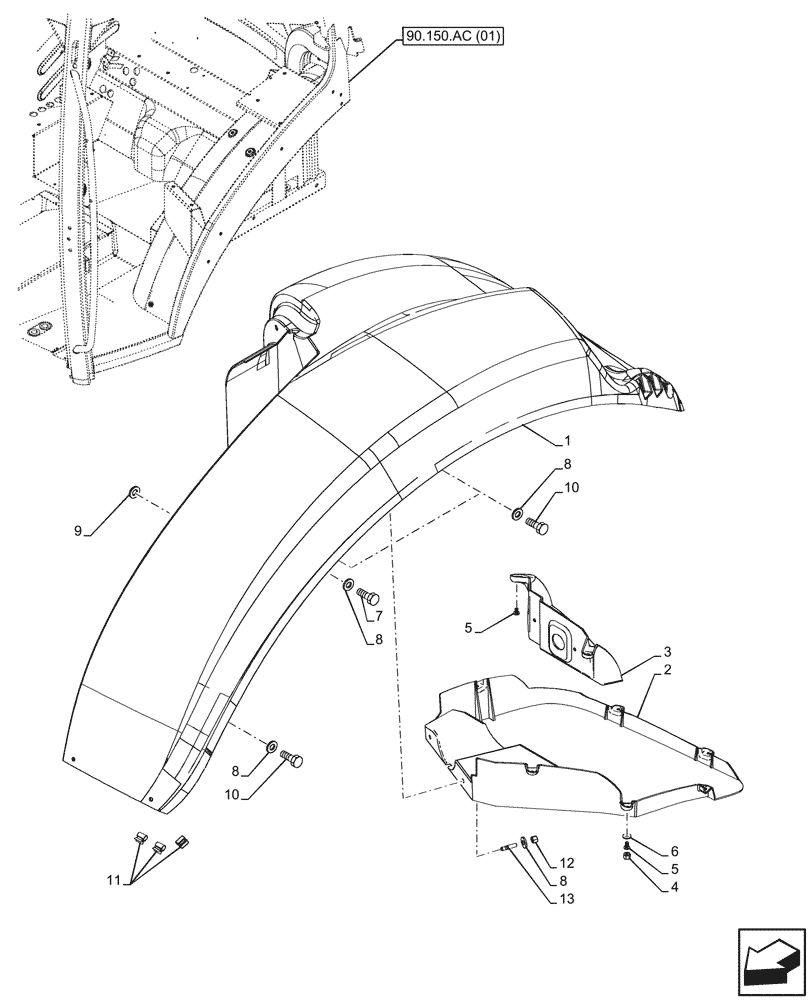

Запчасти Case IH MAXXUM 115 (90.116.AC[10]) - VAR - 743777 - REAR FENDER, NARROW, LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47778942

REAR FENDER

LH, Red

1шт.

2

47550809

SUPPORT

LH

1шт.

3

84511198

COVER

LH

1шт.

4

12574211

NUT,M6 x 1, Cl 8

6шт.

5

87352109

SCREW,Phillips Drive, Pan HD, M10 x 50mm

10шт.

6

12638104

WASHER,5.2mm ID x 14mm OD x 1mm Thk

6шт.

7

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

8

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

6шт.

9

12628901

WASHER,8.15mm ID x 25mm OD x 4mm Thk

1шт.

10

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

11

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

3шт.

12

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

2шт.

13

13517021

STUD,M8 x 12mm x 25mm, Cl 8.8

2шт.
