(90.116.AC[08]) - VAR - 743708 - WIDE REAR FENDERS, EXTENSION

Запчасти Case IH MAXXUM 115 (90.116.AC[08]) - VAR - 743708 - WIDE REAR FENDERS, EXTENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

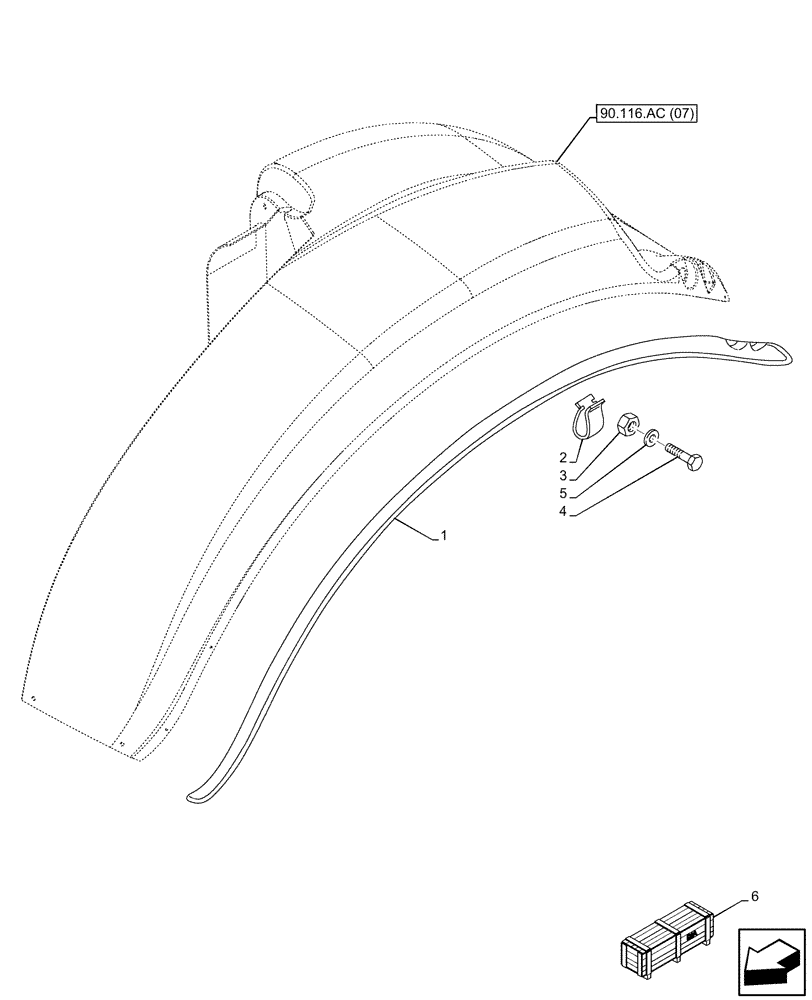

Схема запчастей Case IH MAXXUM 115 - (90.116.AC[08]) - VAR - 743708 - WIDE REAR FENDERS, EXTENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.116.ac (07)
2
6
4
3
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84349866

FENDER EXTENSION

LH

1шт.

1

84349867

FENDER EXTENSION

RH

1шт.

2

87622826

SPRING CLIP,0.5mm Thk

7шт.

3

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

4шт.

4

12638101

WASHER,5.2mm ID x 14mm OD x 1mm Thk

8шт.

5

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

4шт.

6

718293014

DIA KIT, TRACTOR

Rear fender Extensions (75mm), Incl 1 - 5

1шт.

6

710869134

DIA KIT, TRACTOR

Rear fender Extensions, Incl 1 - 5

1шт.
