(90.108.AA[16]) - VAR - 743700 - DECAL, FRONT PTO SWITCH, INTEGRATED HYDRAULIC LIFT

Запчасти Case IH MAXXUM 115 (90.108.AA[16]) - VAR - 743700 - DECAL, FRONT PTO SWITCH, INTEGRATED HYDRAULIC LIFT (90) - PLATFORM, CAB, BODYWORK AND DECALS

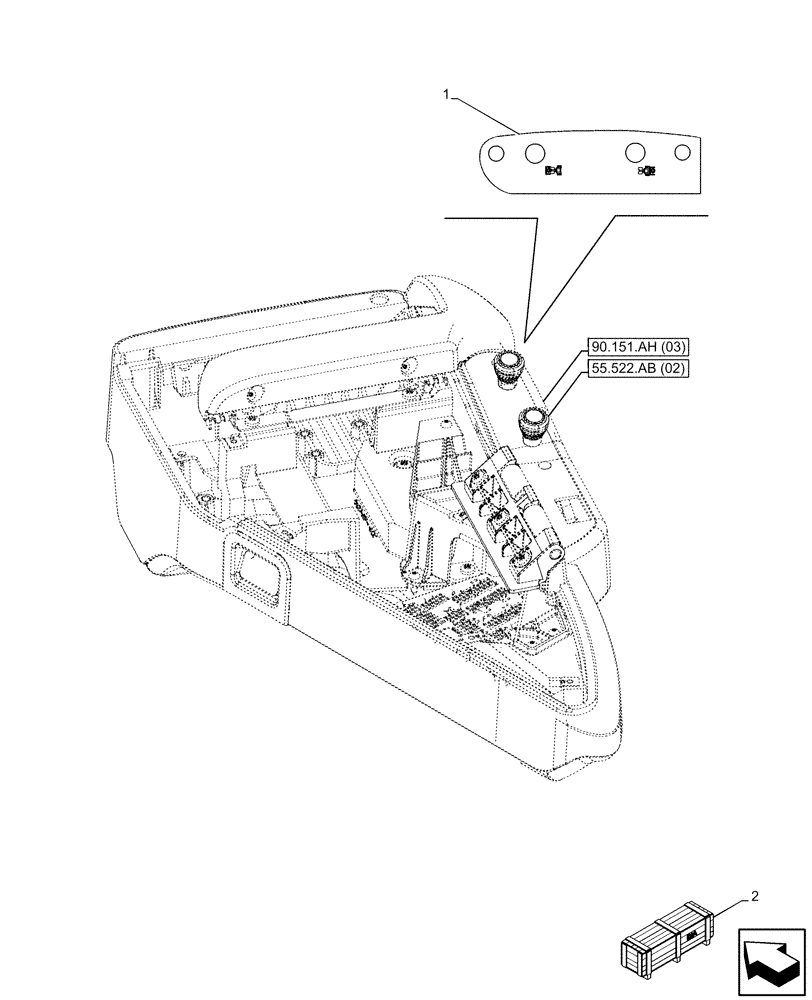

Схема запчастей Case IH MAXXUM 115 - (90.108.AA[16]) - VAR - 743700 - DECAL, FRONT PTO SWITCH, INTEGRATED HYDRAULIC LIFT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.ah (03)
2
1
55.522.ab (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87725492

DECAL

Front and Rear PTO

1шт.

2

718041054

DIA KIT, TRACTOR

Front Power Take-Off W/6 Splines, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

719098114

DIA KIT, TRACTOR

Front Power Take-Off for Hydraulic Power Lift W/6 Splines, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
