(90.100.AC[01]) - VAR - 392209, 743729, 744985 - HOOD, DECAL, PLATE

Запчасти Case IH MAXXUM 115 (90.100.AC[01]) - VAR - 392209, 743729, 744985 - HOOD, DECAL, PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

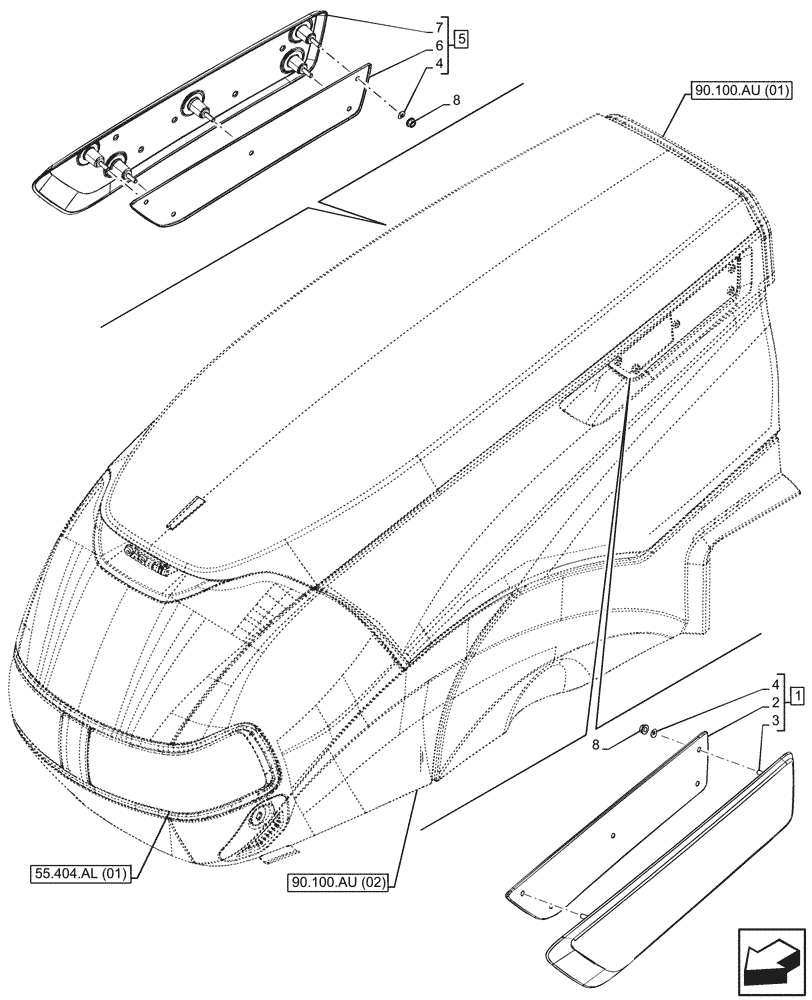

Схема запчастей Case IH MAXXUM 115 - (90.100.AC[01]) - VAR - 392209, 743729, 744985 - HOOD, DECAL, PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS
55.404.al (01)
6
5
3
7
4
4
1
8
8
2
90.100.au (01)
90.100.au (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47585948

PLATE

Logo CASE, LH, ASSY, Incl 2, 3, 4 (Qty 5)

1шт.

2

NSS

NOT SOLD SEPARAT

Grille, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

4

14228074

NUT,M5, Push

10шт.

5

47585986

PLATE

Logo CASE, RH, ASSY, Incl 4 (Qty 5), 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Grille, Incl in 5

1шт.

7

NSS

NOT SOLD SEPARAT

Plate, Incl in 5

1шт.

8

14084211

LOCK NUT,Hex, M6 x 1

10шт.
