Запчасти Case IH MAXXUM 115 (88.100.55[09]) - DIA KIT, JOYSTICK, SUPPORT (88) - ACCESSORIES

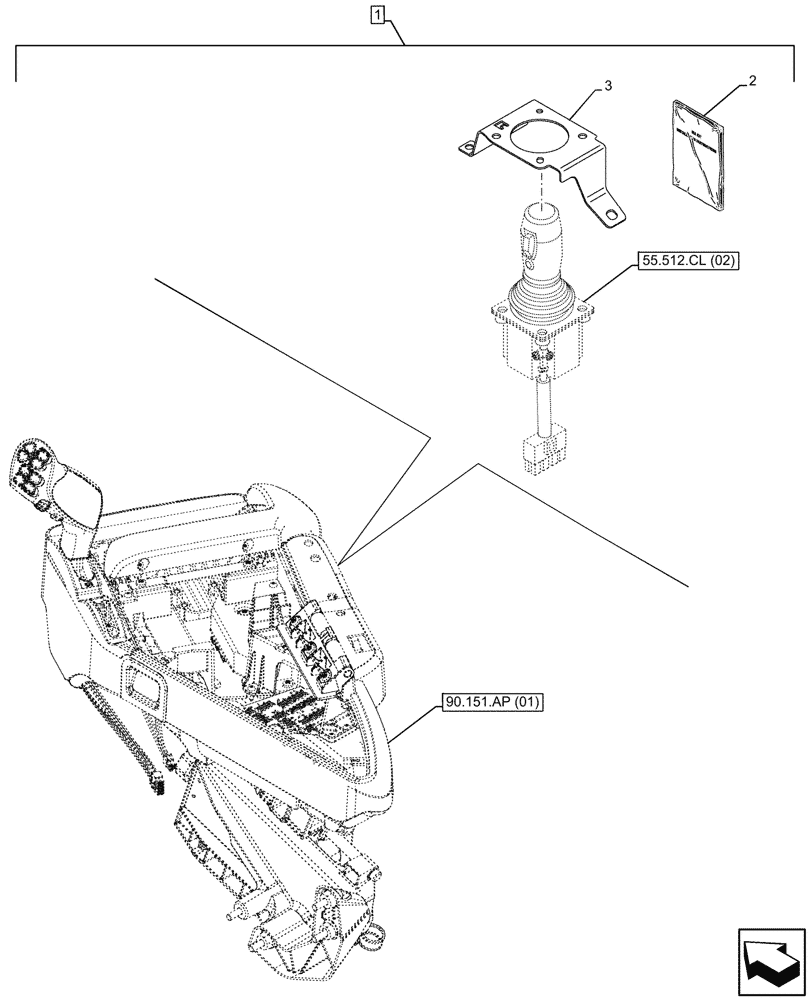

Схема запчастей Case IH MAXXUM 115 - (88.100.55[09]) - DIA KIT, JOYSTICK, SUPPORT (88) - ACCESSORIES
90.151.ap (01)
1
2
3
55.512.cl (02)

Артикул

Название

Примечание

Количество

1

719300024

DIA KIT, TRACTOR

Electronic Joystick with Proportional Sim. Control of 3RD Function, Incl 2, 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

1

719301024

DIA KIT, TRACTOR

Electronic Joystick with 2 Ancillary 12V Buttons for Supply to Diverter Valve, Incl 2, 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47684437

INSTRUCTION

1шт.

3

84150720

HOLDER

1шт.

Выбрано товаров: 6
