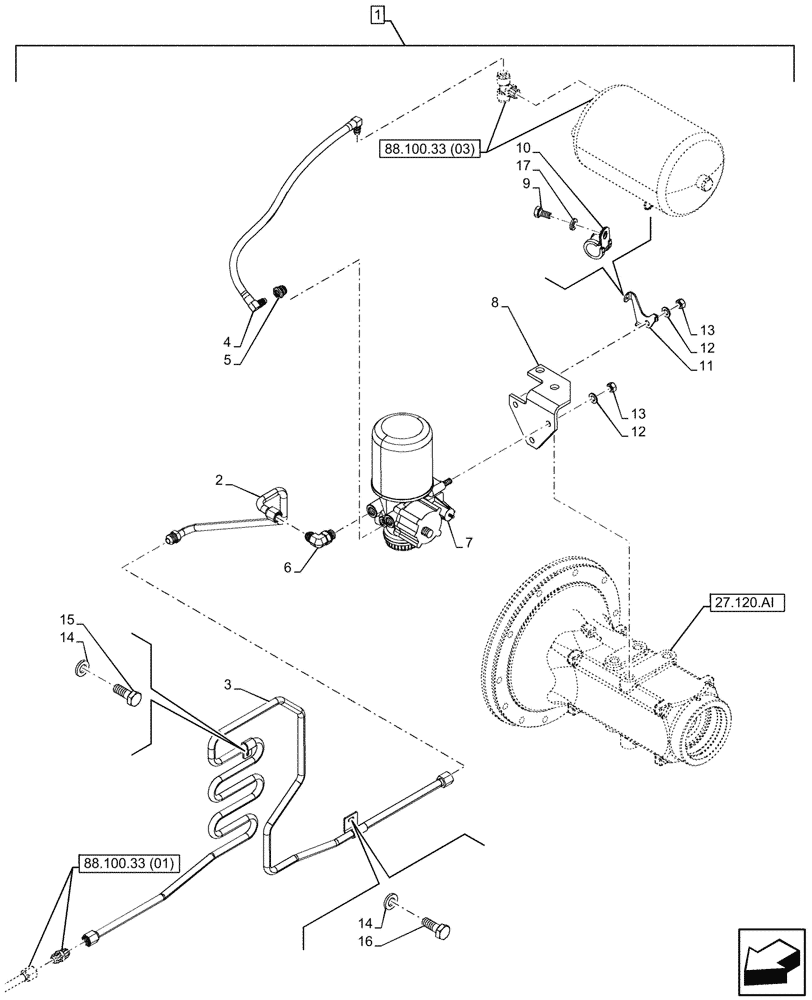

Запчасти Case IH MAXXUM 115 (88.100.33[02]) - DIA KIT, PNEUMATIC TRAILER BRAKE (88) - ACCESSORIES

1

718264034

DIA KIT, TRACTOR

Pneumatic Air Brake, Incl 2 - 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47644543

PIPE

to Air Conditioner

1шт.

3

47644541

PIPE

Air from Compressor

1шт.

4

47386437

TUBE

Air, 700mm

1шт.

5

82036156

FITTING,M22 x 1.5 x NG12

1шт.

6

5161351

90 ELBOW,Male, M22 x 1.5, ORB x 7/8"-14, 37 Degree Fl

1шт.

7

47579727

RECEIVER-DRYER

1шт.

8

84475956

BRACKET

1шт.

9

82880748

SCREW,Pozidrive, Pan HD, M6 x 2 x 14mm, Cl 4.8

1шт.

10

10418801

CLAMP,16mm, Coat, P Type

1шт.

11

47413410

BRACKET

1шт.

12

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

13

11702911

NUT,M12, Cl 8, ZND

3шт.

14

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

15

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

16

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

17

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

1шт.
