Запчасти Case IH MAXXUM 115 (55.680.AA[03]) - VAR - 392209, 743729, 743812 - AUTOGUIDANCE, HARNESS (55) - ELECTRICAL SYSTEMS

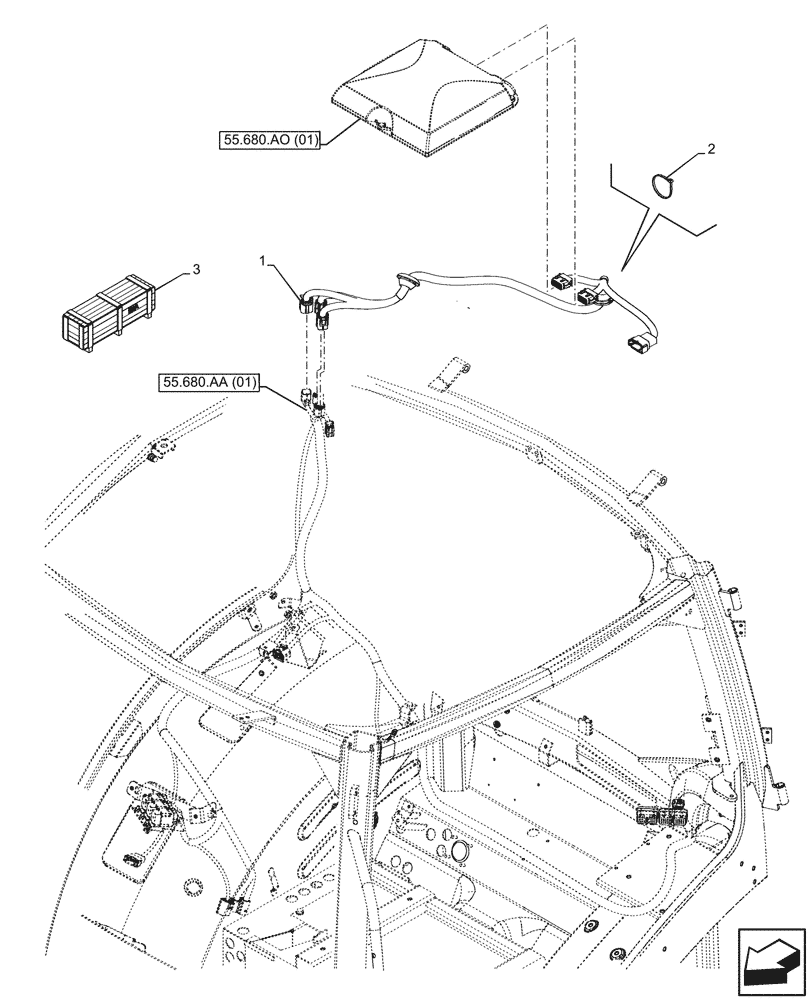

Схема запчастей Case IH MAXXUM 115 - (55.680.AA[03]) - VAR - 392209, 743729, 743812 - AUTOGUIDANCE, HARNESS (55) - ELECTRICAL SYSTEMS
55.680.aa (01)
3
2
1
55.680.ao (01)

Артикул

Название

Примечание

Количество

1

47692584

WIRE HARNESS

Autoguidance Roof

1шт.

2

14560187

COLLAR,199mm L

1шт.

3

718228014

DIA KIT, TRACTOR

Autoguidance System Sps Cl 3 Axle, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

718230014

DIA KIT, TRACTOR

Autoguidance System Sps Cl 3.5 Axle, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 6
